Download PDF

Depth: Single Section 450 / 550mm. Double Section 450+100mm.

Height: 4U, 6U, 9U, 12U, 15U, Witdh: 600mm.

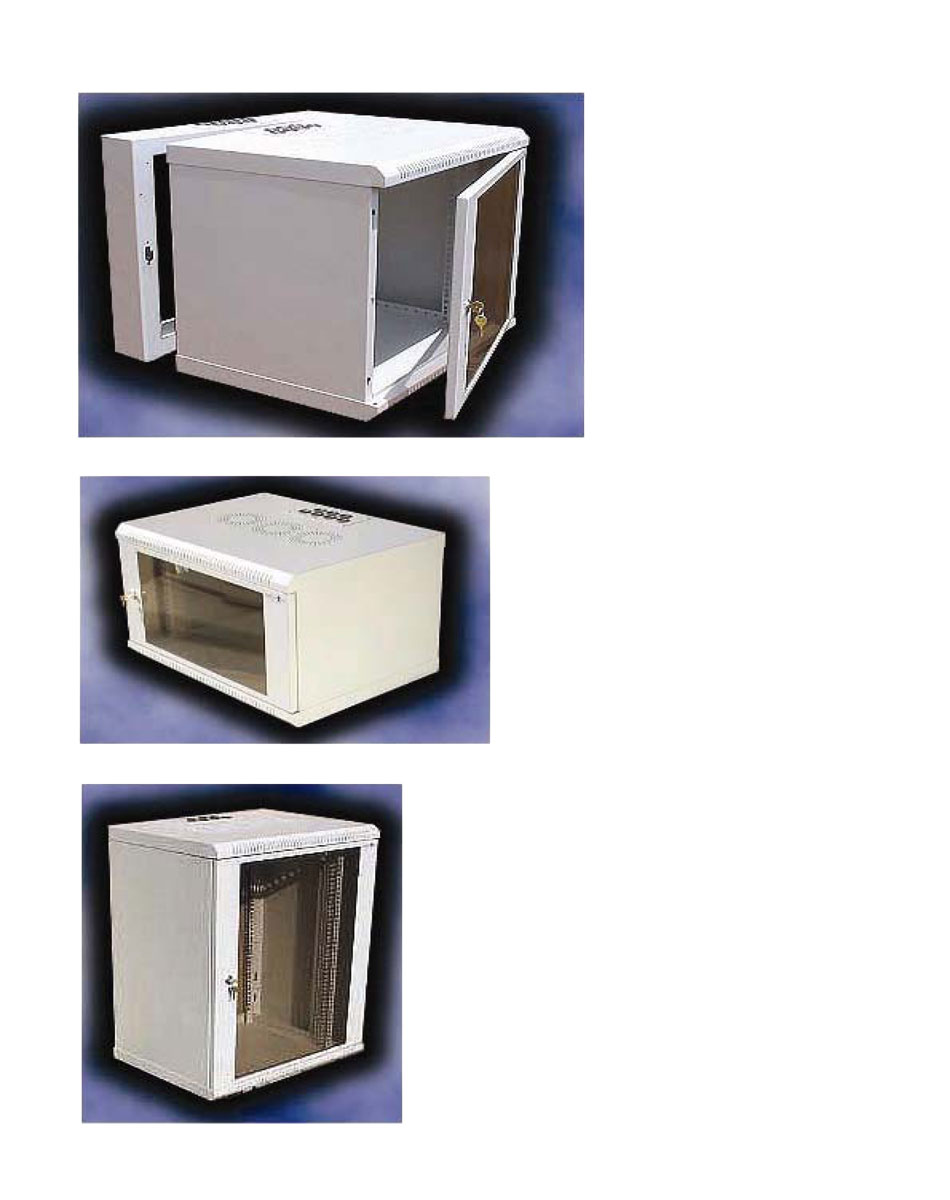

Wall Mount Rack. Single Section Double Section.

SERIES - 89

19" WALL-MOUNTING TELECOMMUNICATION AND DATA RACKS
DESIGNED FOR INSTALLING PATCH PANELS, ACTIVE COMPONENTS, ETC.


• Produced in sizes 4-15U
• Width 600mm
• Two types:
    a) Single-section; depth 450mm
    b) Two-section; depth 550mm, rear section with lock 100mm deep and
        swinging front section 450mm deep, rear section hinged for easier access
• Self-supporting construction made of 1.25mm sheet steel
• Additional holes in rear part for installing 19" components when rack used
  without rear panel
• Color powder coated RAL (standard RAL 7035 , RAL 7021)
• Tinted security glass (EN 12150-1) or sheet steel door with lock and key
• Reversible door - easy re-hanging to open on right or left (at installation site)
• Door opening angle 180o
• Openings for cable entry: top and bottom; covered with rubber grommets
• Two sliding 19" vertical extrusions
• Top cover is perforated for fan ventilation (upto 3 Fans)
• Mounting holes for wall installation on the back




                     15U                                           89 014  **

                     12U                                           89 013  **

                       9U                                           89 012   **

                       6U                                           89 011   **

                       4U                                           89 010

                     15U                                           89 004

  12U                                           89 003

                       9U                                           89 002

                       6U                                           89 001

                       4U                                           89 000

Two Section

Single Section

        Item Description                            Part Number

Ordering Information

Supply Schedule
Fully Assembled Cabinet with Lock + Key
