Strong Points
Knürr Miracel®
-

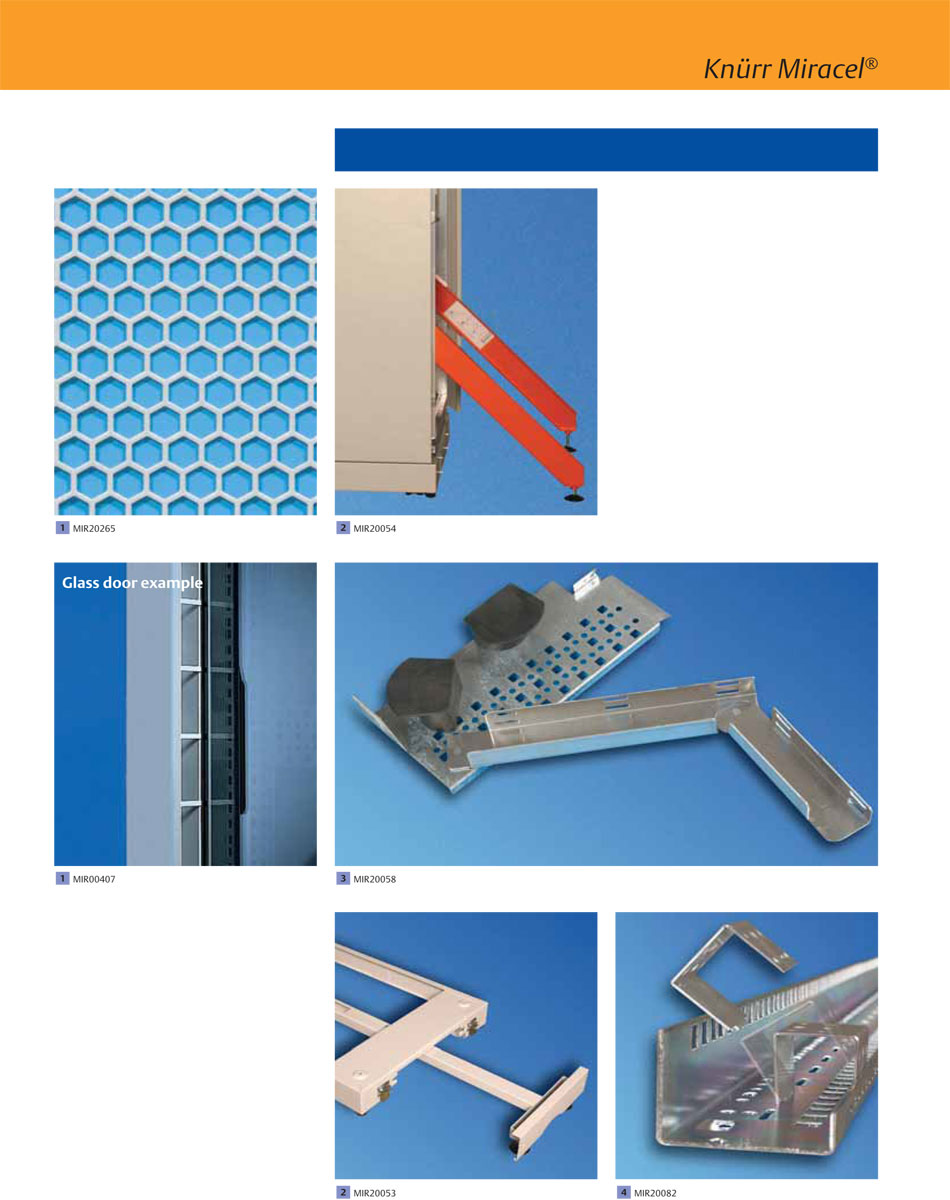

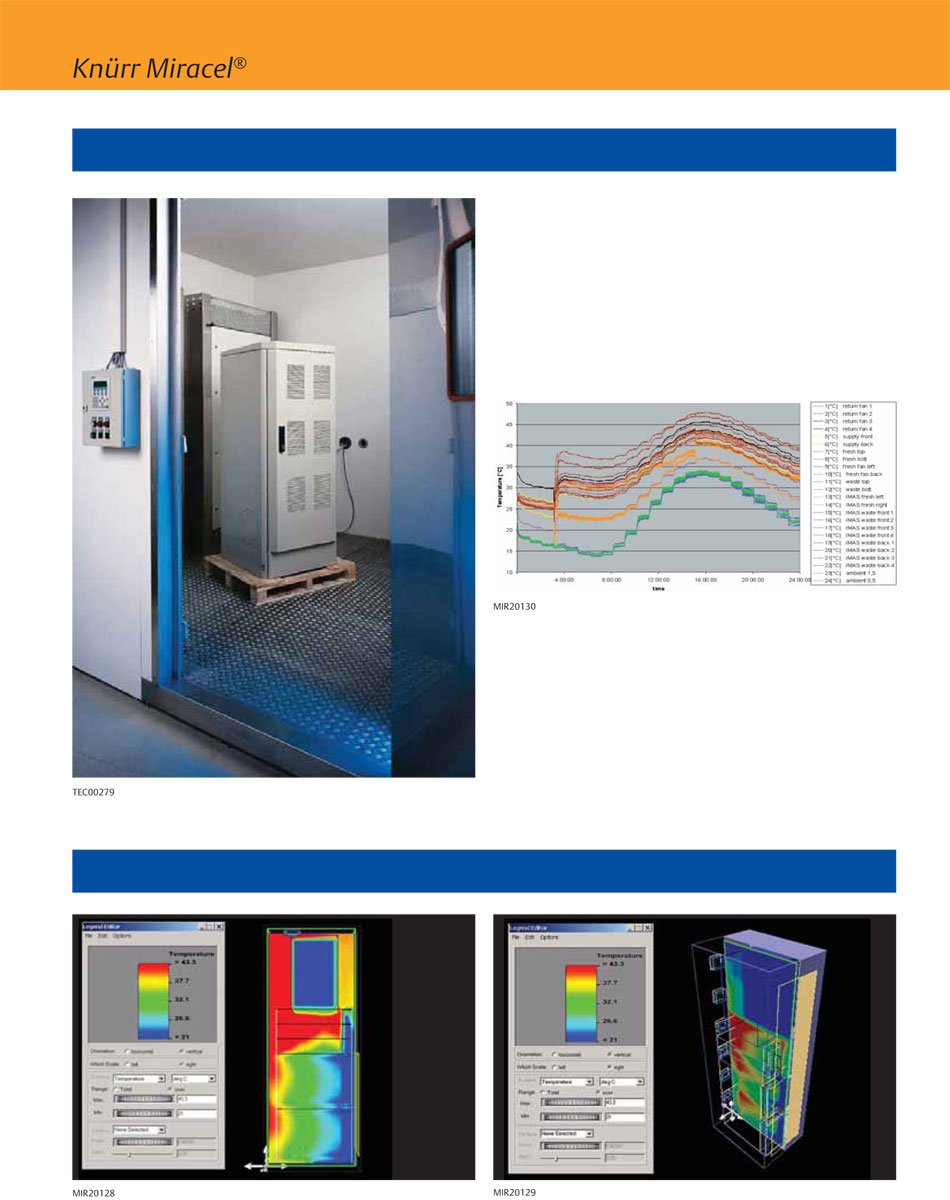

Different concepts and designs for airflow from front to rear. 83% perforation level guarantees optimum airflow.
-
Optional tilt restraint provides safety for service personnel. Also available integrated into the plinth.
-
Different variants for cable management enable adjustment to the set-up conditions.
-
Special server extrusions guarantee easy mounting of 19” servers of all manufacturers.
– For extending rack depths, even at later stages
– Can be used in combination with doors (cannot be used for rear panel)
– Additional cabling space, space for airflow etc. can be easily generated
■ Material
Sheet steel
■ Finish/ Color
Powder-coated texture, RAL 7035
■ Supply schedule
2 trims, vertical
1 horizontal trim, top
Extension adapter
Mounting material
■ How supplied
Flat-packed kit
■ Note
With use of double doors, please also order lock bracket set: Order no. 01.127.649.9
– Can be used in combination with doors (cannot be used for rear panel)
– Additional cabling space, space for airflow etc. can be easily generated
■ Material
Sheet steel
■ Finish/ Color
Powder-coated texture, RAL 7035
■ Supply schedule
2 trims, vertical
1 horizontal trim, top
Extension adapter
Mounting material
■ How supplied
Flat-packed kit
■ Note
With use of double doors, please also order lock bracket set: Order no. 01.127.649.9
Miracel®
Extension Kit, 100 mm

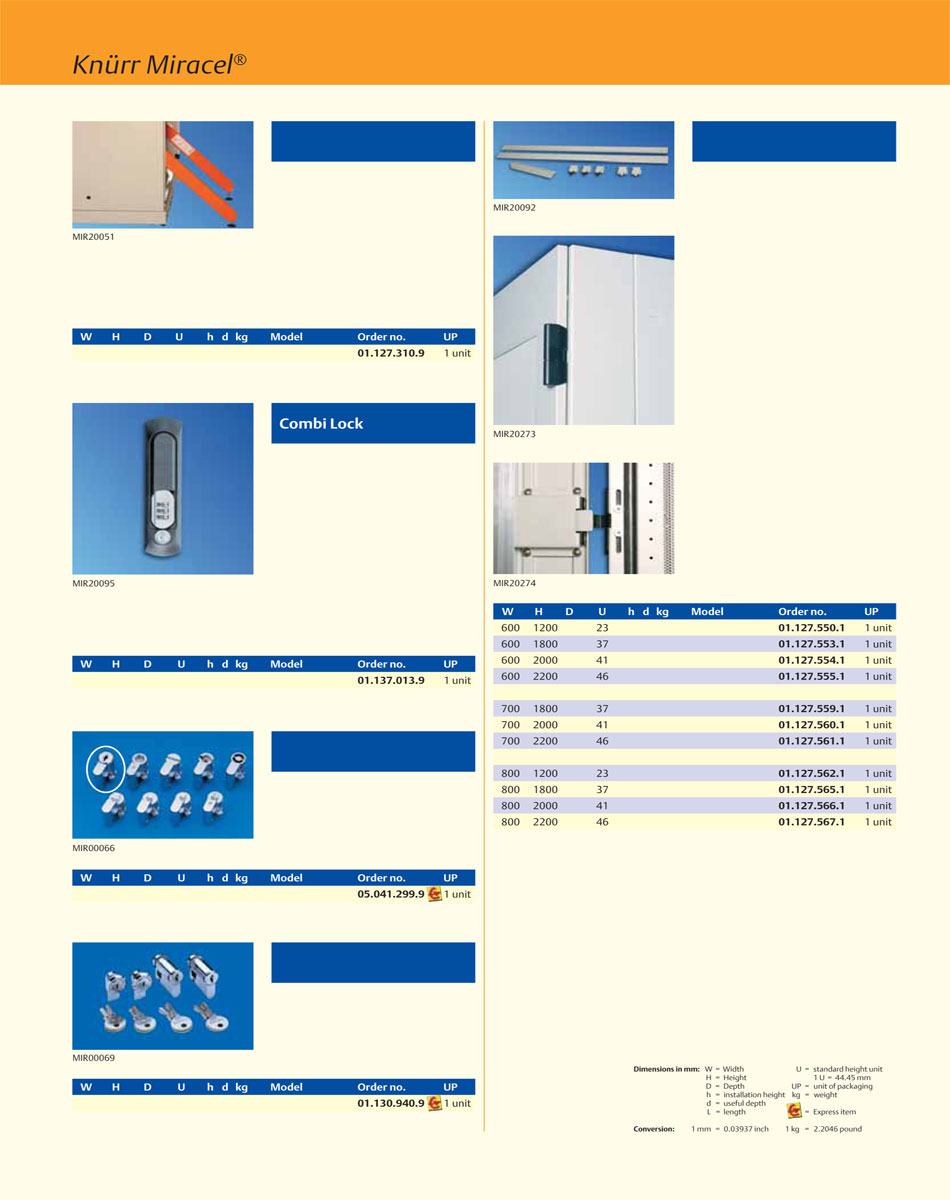

– Mechanical solution for a high-grade lock system
– Access either via a three digit code that can be individually set on the handle or via a master key that enables access to the rack independently of the code setting
– Suitable for Miracel rack single doors with swing handle
– Later upgrade without mechanical alteration also possible
– Access either via a three digit code that can be individually set on the handle or via a master key that enables access to the rack independently of the code setting
– Suitable for Miracel rack single doors with swing handle
– Later upgrade without mechanical alteration also possible
■ Supply schedule
2 cylinders with 2 keys each
2 lockable fasteners for side panel with
2 keys each
2 cylinders with 2 keys each
2 lockable fasteners for side panel with
2 keys each
Complete Locking Set
■ Supply schedule
1 lock set
2 keys (half-cylinder)
■ Note
Further cylinder locks on request
1 lock set
2 keys (half-cylinder)
■ Note
Further cylinder locks on request
Door Locking Set
– For fixing on the front vertical posts of all variants of MIRACEL racks
– Quick and easy mounting and removal without tools
– Use only as required
■ Supply schedule
2 Anti-tilt restrainers
■ How supplied
Flat-packed kit
– Quick and easy mounting and removal without tools
– Use only as required
■ Supply schedule
2 Anti-tilt restrainers
■ How supplied
Flat-packed kit
Tilt Restraint for Miracel® Racks Quick assembly system

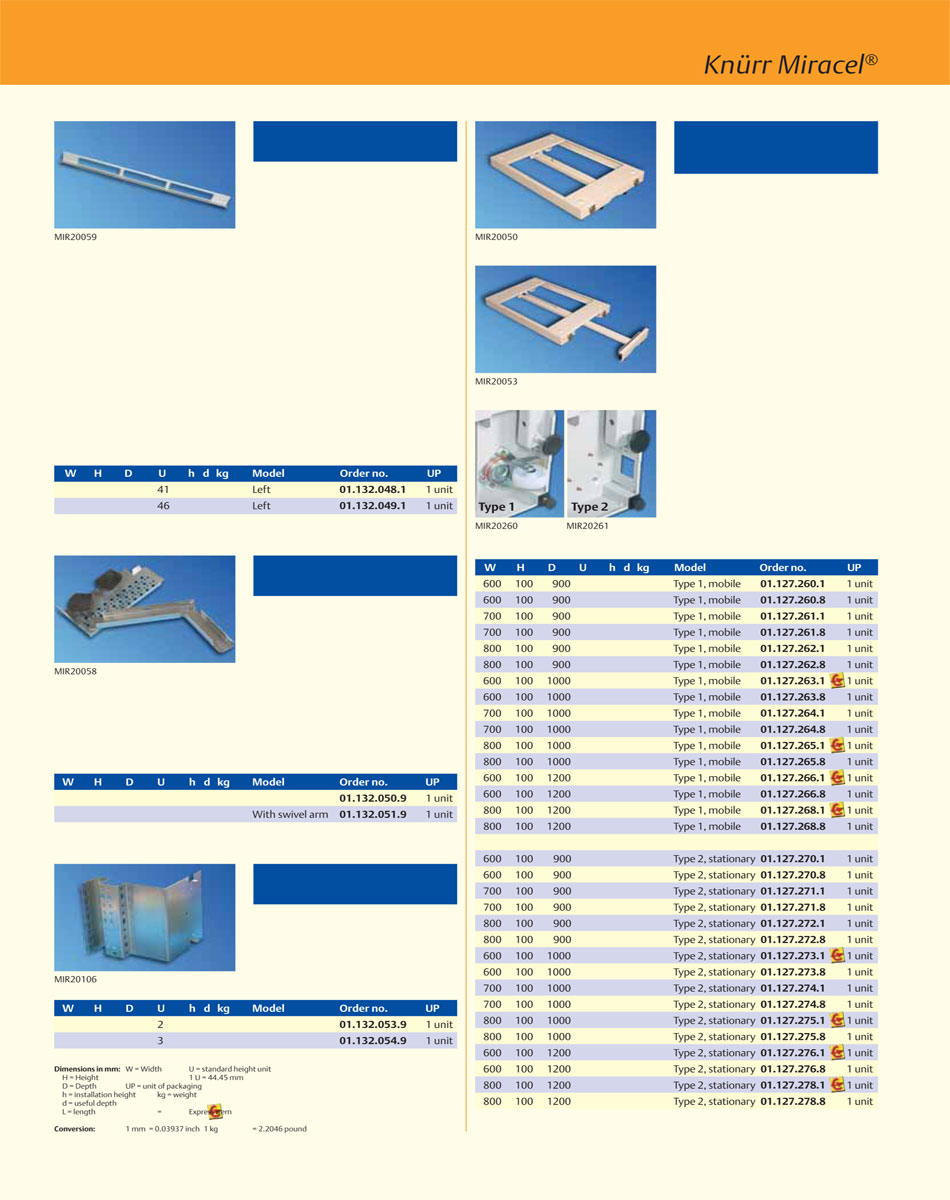

Knürr Miracel® Plinth,
mobile and stationary with tilt restraint, height 100 mm
mobile and stationary with tilt restraint, height 100 mm
■ Type 1: mobile
Type 2: fixed
■ Cable entry possible on the rear
■ Load rating
5000 N static
■ Material
Sheet steel, 2 mm
■ Finish / Color
powder-coated texture,
RAL 7035 light gray
■ Supply schedule, type 1:
1 plinth frame
2 fixed castors with snib
2 swivel castors
4 leveling feet
1 tilt restraint
Mounting material
■ Supply schedule, type 2:
1 plinth frame
4 leveling feet
1 tilt restraint
Mounting material
■ How supplied
Flat-packed kit
Type 2: fixed
■ Cable entry possible on the rear
■ Load rating
5000 N static
■ Material
Sheet steel, 2 mm
■ Finish / Color
powder-coated texture,
RAL 7035 light gray
■ Supply schedule, type 1:
1 plinth frame
2 fixed castors with snib
2 swivel castors
4 leveling feet
1 tilt restraint
Mounting material
■ Supply schedule, type 2:
1 plinth frame
4 leveling feet
1 tilt restraint
Mounting material
■ How supplied
Flat-packed kit
– Only for server rack B 700 with BN
01.132.043.1 / 01.132.044.1
– For mounting chassis on the 19” level with 4 fixing points
01.132.043.1 / 01.132.044.1
– For mounting chassis on the 19” level with 4 fixing points
– For carrying light installation equipment (max. 5 kg)
– For orderly storage of excess cables
– Only for installation in server rack BN 01.132.043.1 / 01.132.044.1
■ Supply schedule
1 storage tray
Mounting material
■ How supplied
Flat-packed kit
– For orderly storage of excess cables
– Only for installation in server rack BN 01.132.043.1 / 01.132.044.1
■ Supply schedule
1 storage tray
Mounting material
■ How supplied
Flat-packed kit
– For installation in W 700 server racks with asymmetric layout of the 19” extrusions
■ Material
Sheet steel, 1.5 mm
■ Finish
Powder-coated, RAL 7035
■ Installation
Can be mounted on the left rack side
19” vertical installation, 3 x 2 U
Max. depth of installation components, 300 mm
(only for installation in server rack BN 01.132.043.1 / 01.132.044.1)
■ Supply schedule
1 trim
Mounting material
■ How supplied
Flat-packed kit
■ Material
Sheet steel, 1.5 mm
■ Finish
Powder-coated, RAL 7035
■ Installation
Can be mounted on the left rack side
19” vertical installation, 3 x 2 U
Max. depth of installation components, 300 mm
(only for installation in server rack BN 01.132.043.1 / 01.132.044.1)
■ Supply schedule
1 trim
Mounting material
■ How supplied
Flat-packed kit
Support Bracket
Cable Tray
Trim for 19” vertical
installation, 3 x 2 U
installation, 3 x 2 U
■ Color
RAL 7035 light gray
■ Supply schedule
1 basic frame
4 19” sheet steel mounting hole server extrusions
2 side panels
1 top cover, closed
1 front door with single safety glass panel and openings for air intake
1 rear door with large area perforation
1 mobile plinth with rear cable entry and leveling feet
6 cable trays with swivel arm (7 with 46 U)
4 19”- support brackets, 2 U (5 with 46 U) (BN 01.132.053.9)
2 19”- support brackets, 3 U (2 with 46 U) (BN 01.132.054.9)
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
RAL 7035 light gray
■ Supply schedule
1 basic frame
4 19” sheet steel mounting hole server extrusions
2 side panels
1 top cover, closed
1 front door with single safety glass panel and openings for air intake
1 rear door with large area perforation
1 mobile plinth with rear cable entry and leveling feet
6 cable trays with swivel arm (7 with 46 U)
4 19”- support brackets, 2 U (5 with 46 U) (BN 01.132.053.9)
2 19”- support brackets, 3 U (2 with 46 U) (BN 01.132.054.9)
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
– Front door with single safety glass panel and
opening for air intake
– Prepared for side cable management with
asymmetric layout of the extrusions
– Side, patented cable management saves on a
high portion of the cable lengths required for
extension
– Support brackets are required at the respective
positions for mounting servers etc.
– The cable trays with swivel arm are prepared
for mounting and routing cables without
cable ties
■ Jumpering space
At the front: 85.5 mm
■ Protection rating
IP 20
■ Material / Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powdercoated
texture
- Doors, sheet steel, powder-coated texture,
glass infill, front door, single safety glass
panel, 4 mm
- Multifunctional braces and 19”
opening for air intake
– Prepared for side cable management with
asymmetric layout of the extrusions
– Side, patented cable management saves on a
high portion of the cable lengths required for
extension
– Support brackets are required at the respective
positions for mounting servers etc.
– The cable trays with swivel arm are prepared
for mounting and routing cables without
cable ties
■ Jumpering space
At the front: 85.5 mm
■ Protection rating
IP 20
■ Material / Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powdercoated
texture
- Doors, sheet steel, powder-coated texture,
glass infill, front door, single safety glass
panel, 4 mm
- Multifunctional braces and 19”

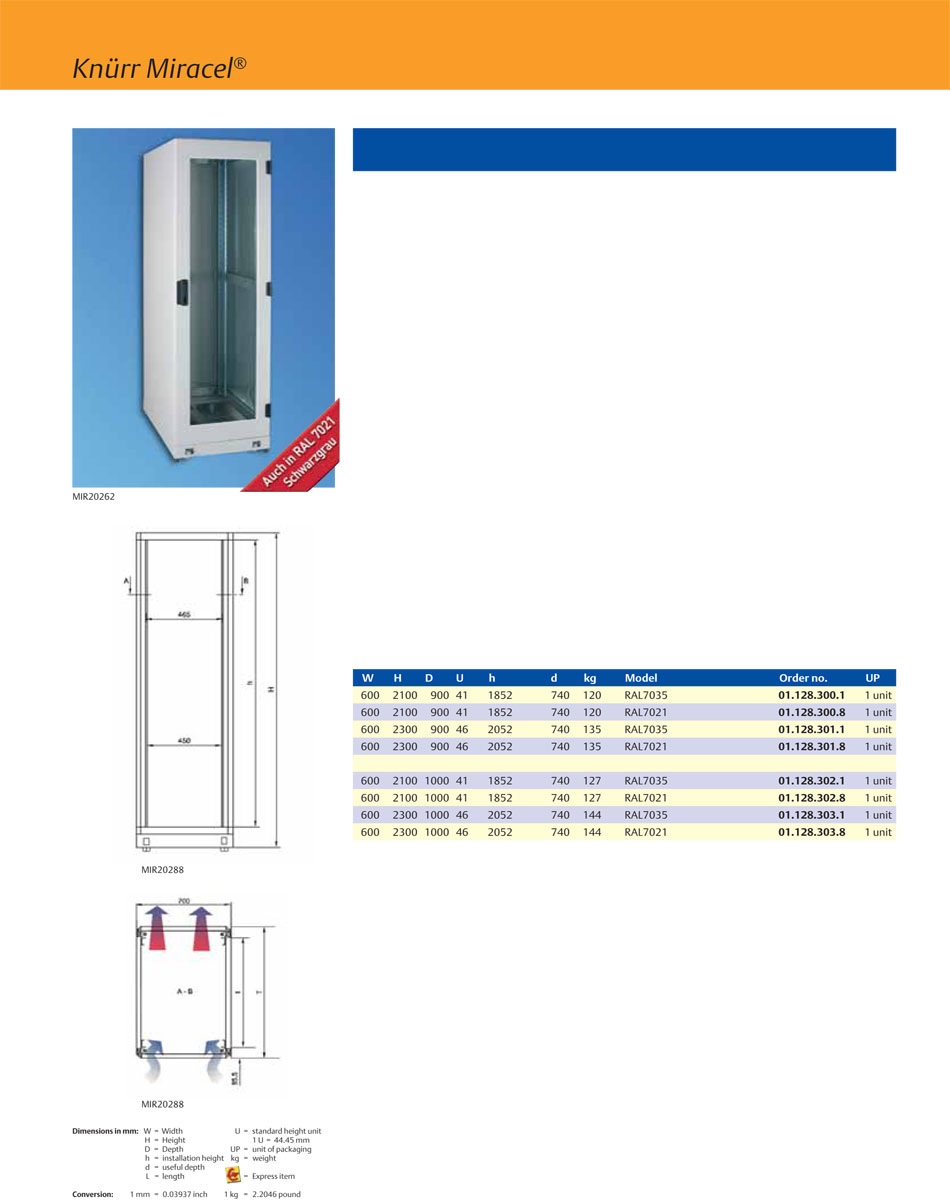

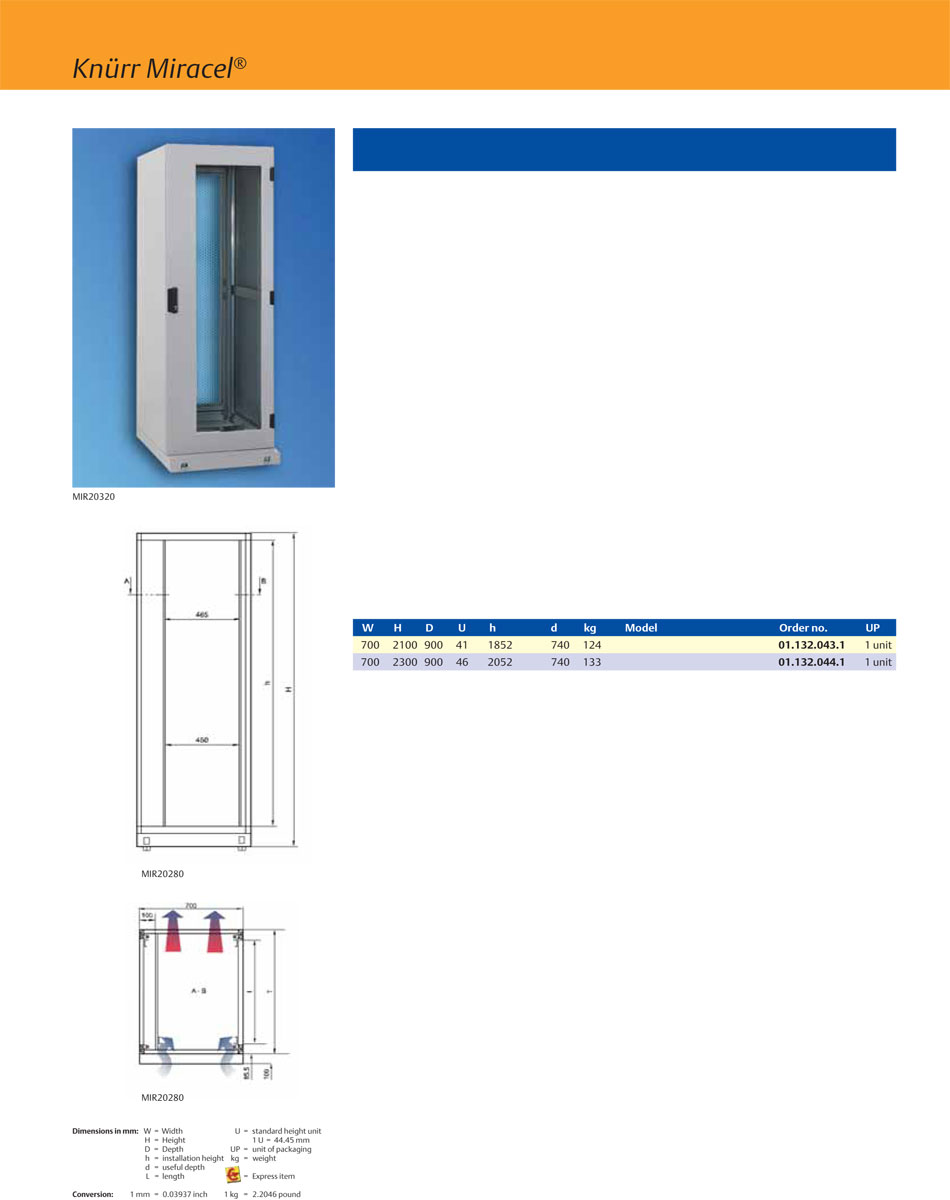

Width 700, front glass door
Knürr Miracel® 19” Server Rack
■ Color
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” sheet steel server extrusions
1 panel, side with 3 x 2 HU vertical installation space
2 side panels
1 top cover, closed
1 front door with large area perforation
1 rear door with large area perforation
1 mobile plinth with rear cable entry and
leveling feet
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server
extrusion for mounting Knürr accessories
(see page 1.39)
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” sheet steel server extrusions
1 panel, side with 3 x 2 HU vertical installation space
2 side panels
1 top cover, closed
1 front door with large area perforation
1 rear door with large area perforation
1 mobile plinth with rear cable entry and
leveling feet
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server
extrusion for mounting Knürr accessories
(see page 1.39)
– Front door with large area perforation for
ventilation
– Prepared for side cable management with
asymmetric layout of the extrusions
– Front, on the side, 3 x 2 U additional 19”
installation space
■ Jumpering space
At the front: 85.5 mm
■ Protection rating
IP 20
■ Airflow circulation
Perforation level: 83%
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powdercoated
texture
- Doors, sheet steel, powder-coated texture
- Multifunctional braces and 19” extrusions,
sheet steel, zinc-passivatedh 700, doors with perforation
ventilation
– Prepared for side cable management with
asymmetric layout of the extrusions
– Front, on the side, 3 x 2 U additional 19”
installation space
■ Jumpering space
At the front: 85.5 mm
■ Protection rating
IP 20
■ Airflow circulation
Perforation level: 83%
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powdercoated
texture
- Doors, sheet steel, powder-coated texture
- Multifunctional braces and 19” extrusions,
sheet steel, zinc-passivatedh 700, doors with perforation

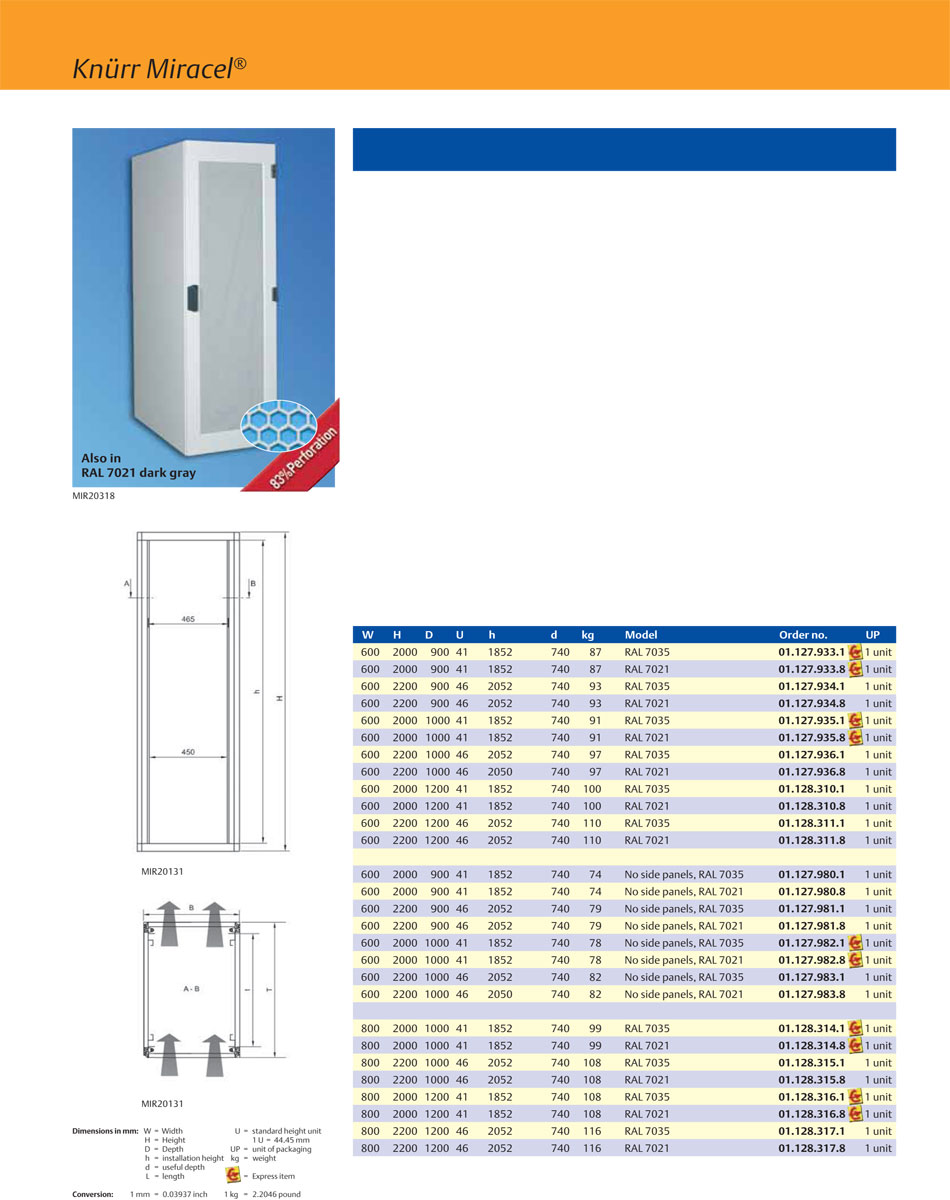

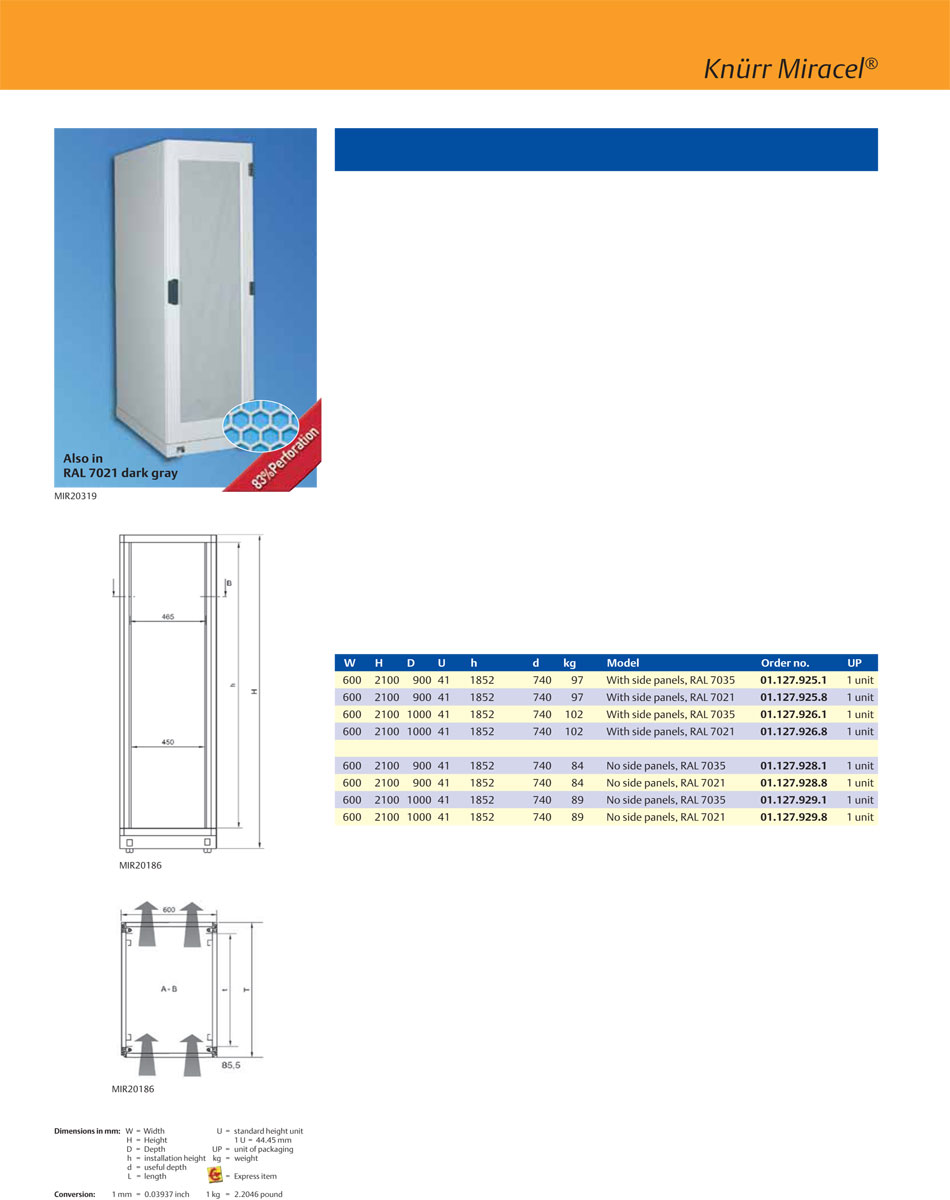

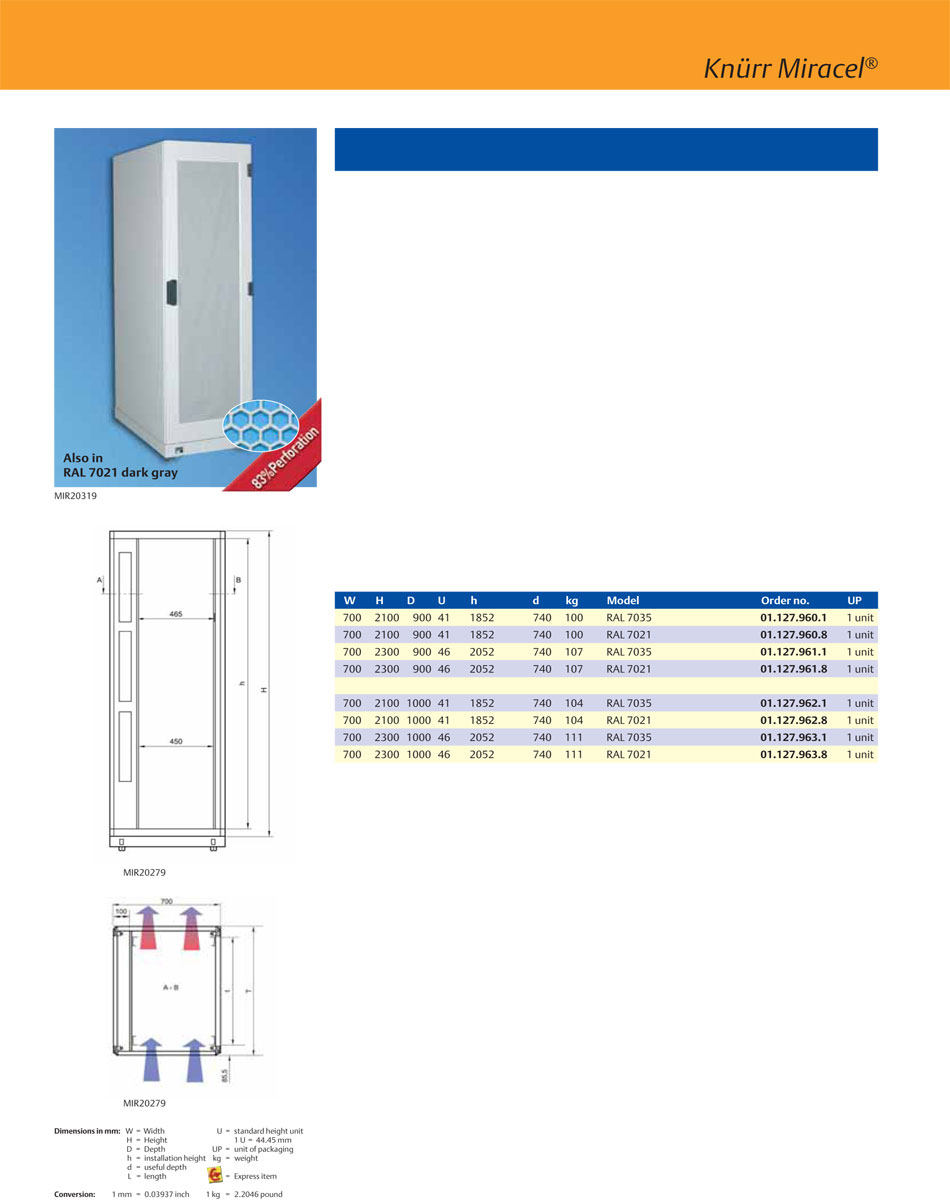

Width 700, doors with perforation
Knürr Miracel® 19” Server Rack
■ Color
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” sheet steel server extrusions
2 side panels with quick connectors
1 top cover, closed
1 front door with single safety glass panel
1 rear door, sheet steel with perforation, large air intake cross section
1 mobile plinth with rear cable entry and leveling feet
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server extrusion for mounting Knürr accessories (see page 1.39)
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” sheet steel server extrusions
2 side panels with quick connectors
1 top cover, closed
1 front door with single safety glass panel
1 rear door, sheet steel with perforation, large air intake cross section
1 mobile plinth with rear cable entry and leveling feet
1 complete earthing set
1 complete locking set
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server extrusion for mounting Knürr accessories (see page 1.39)
– With fixed 19” installation on the front and
rear for components in accordance with IEC297-3
– Prepared for mounting trade standard servers
with special server extrusions
– Cable entry via plinth
– Door opening angle 180°
– Airflow from the front to the rear with
recessed glass panel on the front door and
perforation on the rear doors
■ Jumpering space
At the front: 85.5 mm
■ Load rating
5000 N static
■ Airflow circulation
1500 cm2 with 41 U
1700 cm2 with 46 U
■ Tests
- Earthing in acc. with VDE 0100 T 540
- Vibration test in acc. with MIL-STD 810 E
- IP test in acc. with DIN 40 050 / IEC 529
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powder coated
texture
- Doors, sheet steel, powder-coated texture, glass infill, front door, single safety glass panel, 4 mm
- Multifunctional braces, sheet steel, zinc-plated
rear for components in accordance with IEC297-3
– Prepared for mounting trade standard servers
with special server extrusions
– Cable entry via plinth
– Door opening angle 180°
– Airflow from the front to the rear with
recessed glass panel on the front door and
perforation on the rear doors
■ Jumpering space
At the front: 85.5 mm
■ Load rating
5000 N static
■ Airflow circulation
1500 cm2 with 41 U
1700 cm2 with 46 U
■ Tests
- Earthing in acc. with VDE 0100 T 540
- Vibration test in acc. with MIL-STD 810 E
- IP test in acc. with DIN 40 050 / IEC 529
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum, polished
- Covers, zinc-passivated sheet steel, powder coated
texture
- Doors, sheet steel, powder-coated texture, glass infill, front door, single safety glass panel, 4 mm
- Multifunctional braces, sheet steel, zinc-plated
Width 600, mobile, glass front door

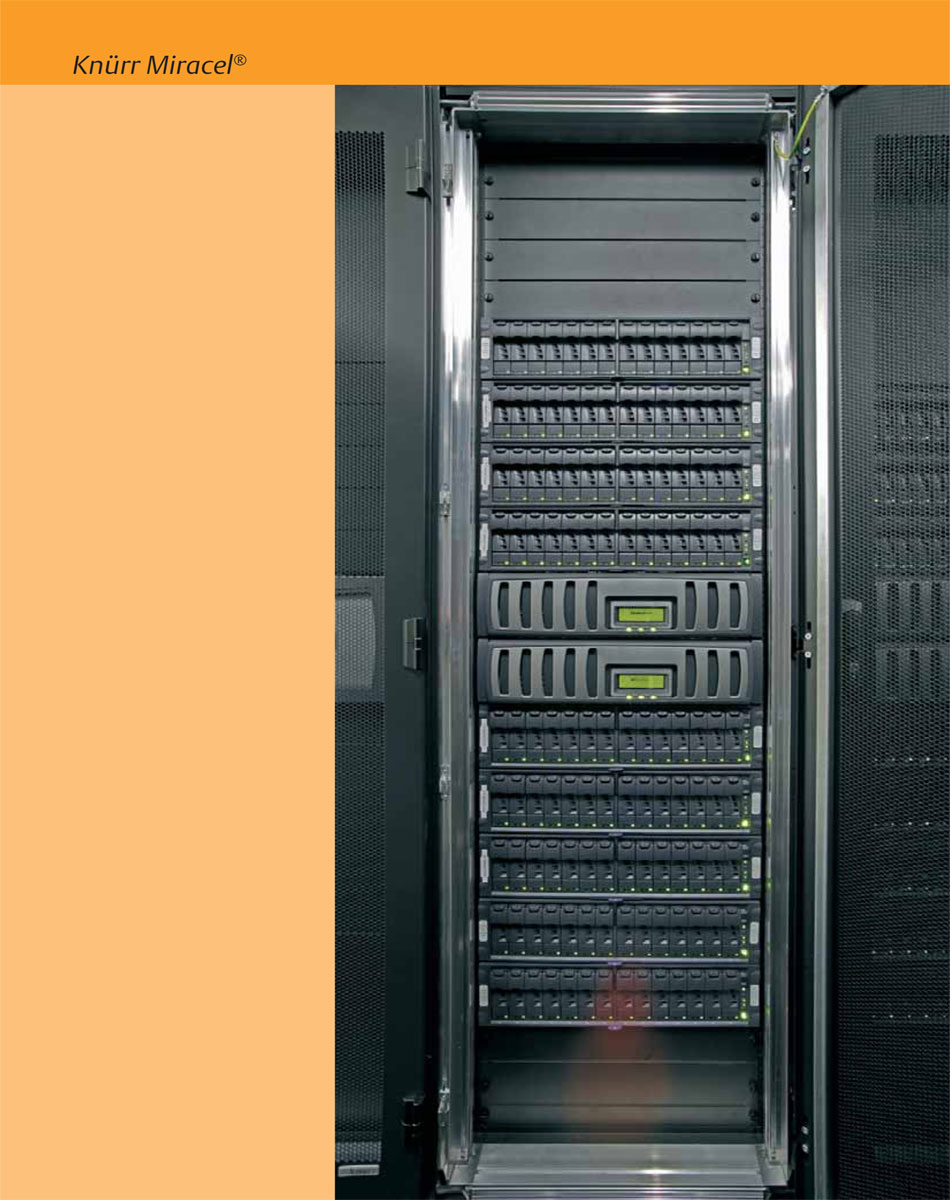

Knürr Miracel® 19” Server Rack
■ Color
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” server sheet steel mounting hole extrusions
2 perforated doors (perforation: 83%)
2 side panels
1 top cover with cable entry
1 complete earthing set
1 mobile plinth with tilt restraint
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server extrusion for mounting Knürr accessories (see MIR20319 page 1.39)
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021
dark gray
■ Supply schedule
1 basic frame
4 19” server sheet steel mounting hole extrusions
2 perforated doors (perforation: 83%)
2 side panels
1 top cover with cable entry
1 complete earthing set
1 mobile plinth with tilt restraint
■ How supplied
Assembled
■ Note
Also order mounting adapter for 19” server extrusion for mounting Knürr accessories (see MIR20319 page 1.39)
■ Jumpering space
At the front: 85.5 mm
■ Load rating
5000 N static
■ Protection rating
IP 20
■ Airflow circulation
Perforation level: 83%
■ Tests
- Earthing in acc. with VDE 0100 T 540
- Vibration test in acc. with MIL-STD 810 E
- IP test in acc. with DIN 40 050 / IEC 529
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum
- Multifunctional braces and 19” extrusions,
sheet steel, zinc-passivated
- Visible surface of the cover powder-coated texture
At the front: 85.5 mm
■ Load rating
5000 N static
■ Protection rating
IP 20
■ Airflow circulation
Perforation level: 83%
■ Tests
- Earthing in acc. with VDE 0100 T 540
- Vibration test in acc. with MIL-STD 810 E
- IP test in acc. with DIN 40 050 / IEC 529
■ Material/ Finish
- Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum
- Multifunctional braces and 19” extrusions,
sheet steel, zinc-passivated
- Visible surface of the cover powder-coated texture
– Basic version with mobile plinth, integrated
pull-out tilt restraint
– With special 19” server extrusions for mounting
trade standard servers, such as Compaq, Dell,
Sun, IBM
– With perforated doors on the front and rear
for optimal airflow, honeycomb shaped,
perforation, 83% airflow
Width 600 mm, doors with perforation, with mobile plinth and tilt restraint
Knürr Miracel® 19” ASP Rack, Server Rack
- Material/Finish - Basic rack, extruded aluminum, polished
- Corner piece, die-cast aluminum
- Multifunctional braces and 19” bracket
extrusions, sheet steel, zinc-passivated
- Visible surface of the cover, powder-coated texture
- Tests - Earthing in acc. with VDE 0100 T 540 - Vibration test in acc. with MIL-STD 810 E - IP test in acc. with DIN 40 050 / IEC 529
- Jumpering space At the front: 85.5 mm
- Load rating 5000 N static
- Protection rating IP 20
- Airflow circulation Perforation level: 83%
- Color
Final digit of order number .1:
Visible surface of covers, RAL 7035
light gray
Final digit of order number .8:
Visible surfaces of the covers, RAL 7021 dark gray - Supply schedule
1 basic frame
4 19” server sheet steel mounting hole extrusions
2 perforated doors (perforation: 83%)
2 side panels
1 top cover, closed
1 complete earthing set
1 complete locking set - How supplied
Assembled - Note
Also order mounting adapter for 19” server
extrusion for mounting Knürr accessories
(see page 1.39)
– Basic version without plinth; can also be ordered if required – With special 19” server extrusions for mounting trade standard servers – With perforated doors on the front and rear for optimal airflow
Widths 600 mm and 800 mm, front door with perforations
Knürr Miracel® 19” ASP Rack/19” Server Rack

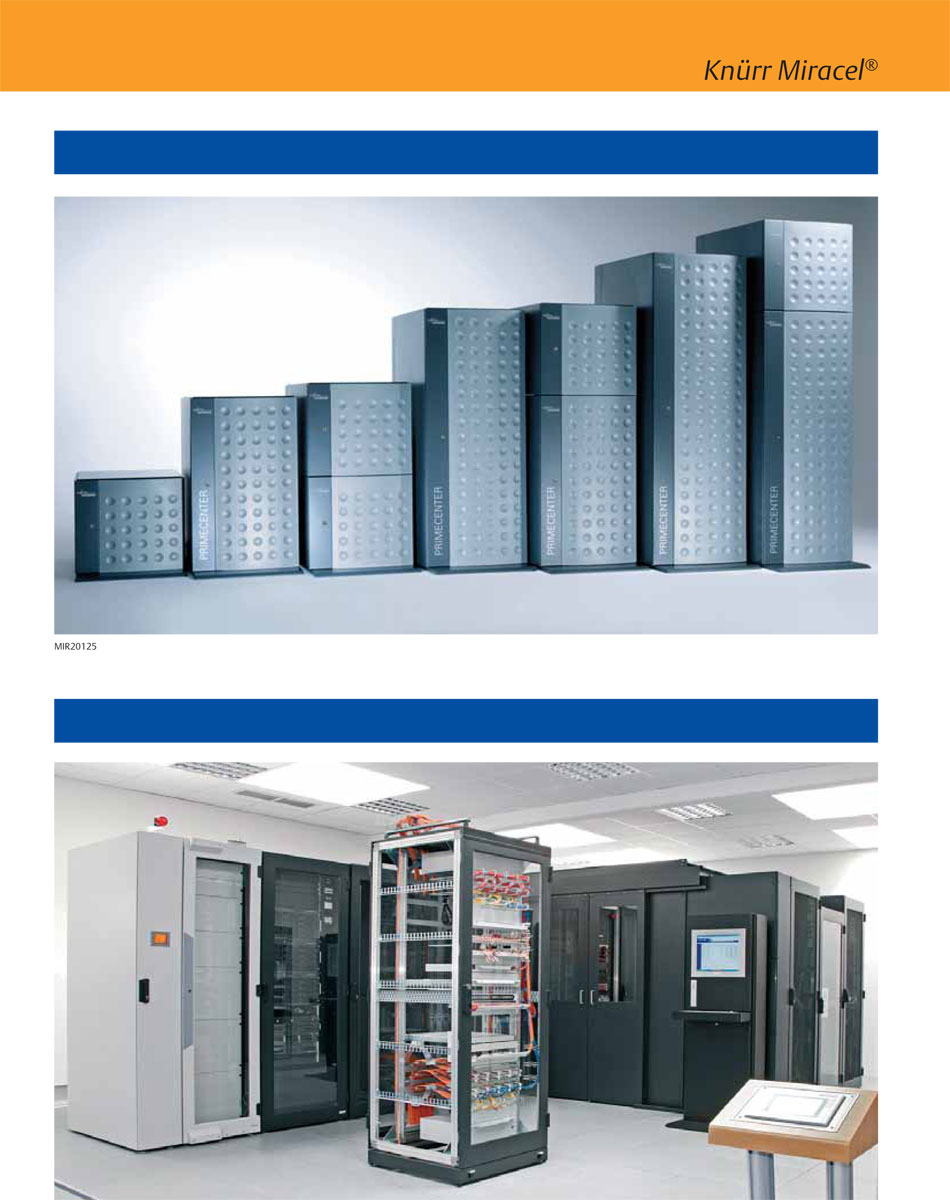

Knürr Showroom
Knürr server racks as requested by the customer
Knürr Thermal Management Lab Measurements, calculations and tests
– Internal dimensions (3.0 x 3.0 x 3.0) m2 – Temperature range -45 to 60 °C – Humidity range 10% bis 95%
– IP requirements – Electro-Magnetic Compatibility – Corrosive resistance – Earthquake stability – Environmental tests
Knürr products meet the requirements of most environmental influences:thermal, chemical and mechanical
Airflow and heat simulation
Proven safety with airflow measurements in the thermal management lab
ABU DHABI DUBAI JAFZA MUSCAT DOHA
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
