HSLHCH-JZ
| Cross Section | Conductor Resistance |
| (Max. Ω/km) | |
| 0.50 mm˛ | 39.0 |
| 0.75 mm˛ | 26.0 |
| 1.00mm˛ | 19.5 |
| 1.50 mm˛ | 13.3 |
| 2.50 mm˛ | 7-98 |
| Technical and Electrical Properties (20°C) | ||
| Operating Voltage | 0.50 mm˛ ... 1.50 mm˛ | 300V/500V |
| 2.50mm˛............... .. | 450V/ 750V | |
| Test Voltage | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 10x Cable Diameter |
| Flexible | 20 x Cable Diameter | |
4.00 mm˛ and 6.00 mm˛ cross sections are also available for HSLHCH·JZ cables.
| PART NUMBER | NO OF CORES/CROSS SECTION (mm˛ ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) |
| 0.50mm˛ | ||||
| 33x40502 | 2x0.50 | 6.8 | 20.3 | 70 |
| 33x40503 | 3x0.50 | 7.0 | 24.9 | 81 |
| 33x40504 | 4x0.50 | 7.9 | 31.8 | 96 |
| 33x40505 | 5x0.50 | 8.4 | 37.4 | 109 |
| 33x40506 | 6x0.50 | 8.9 | 42.6 | 121 |
| 33x40507 | 7x0.50 | 8.9 | 46.9 | 134 |
| 33x40508 | 8x0.50 | 9.8 | 53.6 | 149 |
| 33x40509 | 9x0.50 | 10.4 | 58.7 | 166 |
| 33x40510 | 10x0.50 | 11.0 | 65.2 | 184 |
| 33x40512 | 12x0.50 | 11.3 | 74.7 | 216 |
| 33x40515 | 15x0.50 | 12.8 | 90.1 | 256 |
|
33x40516 |
16x0.50 |
12.8 | 94.3 | 269 |
|
33x40519 |
19x0.50 |
13.3 | 106.4 | 308 |
|
33x40520 |
20x0.50 |
14.0 | 122.5 | 321 |
|
33x40521 |
21x0.50 |
14.0 | 126.8 | 334 |
|
33x40525 |
25x0.50 |
15.3 | 148.9 | 389 |
|
33x40527 |
27x0.50 |
15.8 | 159.0 | 409 |
|
33x40530 |
30x0.50 |
16.2 | 174.4 | 443 |
|
0.75mm˛ |
||||
| 33x40802 | 2x0.75 | 7.2 | 26.8 | 80 |
| 33x40803 | 3x0.75 | 7.6 | 35.7 | 96 |
| 33x40804 | 4x0.75 | 8.2 | 44.2 | 115 |
| 33x40805 | 5x0.75 | 9.1 | 51.9 | 137 |
| 33x40806 | 6x0.75 | 9.8 | 61.4 | 155 |
| 33x40807 | 7x0.75 | 9.8 | 67.9 | 166 |
| 33x40808 | 8x0.75 | 10.4 | 76.7 | 192 |
| 33x40809 | 9x0.75 | 11.1 | 84.5 | 218 |
| 33x40810 | 10x0.75 | 12.0 | 93.3 | 244 |
| 33x40812 | 12x0.75 | 12.5 | 108.3 | 270 |
|
33x40815 |
15x0.75 |
13.8 | 139.9 | 323 |
|
33x40816 |
16x0.75 |
13.8 | 146.4 | 338 |
|
33x40219 |
19x0.75 |
14.6 | 169.2 | 397 |
|
33x40820 |
20x0.75 |
15.3 | 178.5 | 419 |
|
33x40821 |
21x0.75 |
15.3 | 185.5 | 431 |
|
33x40825 |
25x0.75 |
16.9 | 217.2 | 509 |
|
33x40827 |
27x0.75 |
17.4 | 237.2 | 542 |
|
33x40830 |
30x0.75 |
18.1 | 255.5 | 614 |
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
| PART NUMBER | NO OF CORES/CROSS SECTION (mm˛ ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
1.00mm˛ |
|||||
| 33x41002 | 2x1.00 | 7.9 | 34.0 | 96 | |
| 33x41003 | 3x1.00 | 8.3 | 44.2 | 113 | |
| 33x41004 | 4x1.00 | 9.1 | 54.5 | 135 | |
| 33x41005 | 5x1.00 | 10.0 | 64.2 | 165 | |
| 33x41006 | 6x1,00 | 11.0 | 79.5 | 196 | |
| 33x41007 | 7x1.00 | 11.0 | 86.5 | 207 | |
| 33x41008 | 8x1.00 | 12.0 | 96.9 | 243 | |
| 33x41009 | 9x1,00 | 12.9 | 109.8 | 277 | |
| 33x41010 | 10x1.00 | 14.2 | 127.7 | 335 | |
| 33x41012 | 12x1.00 | 14.5 | 147.9 | 367 | |
|
33x41015 |
15x1.00 |
15.8 | 178.9 | 437 | |
|
33x41016 |
16x1.00 |
15.8 | 187.9 | 443 | |
|
33x41019 |
19x1.00 |
16.9 | 216.7 | 516 | |
|
33x41020 |
20x1.00 |
17.9 | 230.9 | 565 | |
|
33x41021 |
21x1.00 |
17.9 | 239.9 | 571 | |
|
33x41025 |
25x1.00 |
19.6 | 283.4 | 694 | |
|
1.50mm˛ |
|||||
| 33x41502 | 2x1.50 | 8.6 | 44.4 | 118 | |
| 33x41503 | 3x1.50 | 9.1 | 58.8 | 138 | |
| 33x41504 | 4x1.50 | 10.0 | 75.0 | 170 | |
| 33x41505 | 5x1.50 | 11.0 | 90.4 | 207 | |
| 33x41506 | 6x1,50 | 12.1 | 112.0 | 249 | |
| 33x41507 | 7x1.50 | 12.1 | 119.8 | 260 | |
| 33x41508 | 8x1.50 | 13.1 | 140.6 | 302 | |
| 33x41509 | 9x1,50 | 14.2 | 158.7 | 353 | |
| 33x41510 | 10x1.50 | 15.2 | 177.5 | 401 | |
| 33x41512 | 12x1.50 | 15.6 | 206.1 | 437 | |
|
33x41515 |
15x1.50 |
17.4 | 251.3 | 540 | |
|
33x41516 |
16x1.50 |
17.4 | 264.8 | 551 | |
|
33x41519 |
19x1.50 |
18.6 | 301.5 | 637 | |
|
33x41520 |
20x1.50 |
19.6 | 328.1 | 693 | |
|
2.50mm˛ |
|||||
| 33x42502 | 2x2.50 | 10.0 | 65.7 | 164 | |
| 33x42503 | 3x2.50 | 10.6 | 89.3 | 196 | |
| 33x42504 | 4x2.50 | 11.6 | 113.7 | 239 | |
| 33x42505 | 5x2.50 | 13.0 | 144.0 | 302 | |
| 33x42506 | 6x2.50 | 14.1 | 185.8 | 357 | |
| 33x42507 | 7x2.50 | 14.1 | 192.8 | 373 | |
| 33x42508 | 8x2.50 | 15.9 | 219.5 | 457 | |
| 33x42509 | 9x2.50 | 16.8 | 245.4 | 511 | |
| 33x42510 | 10x2.50 | 18.0 | 272.0 | 578 | |

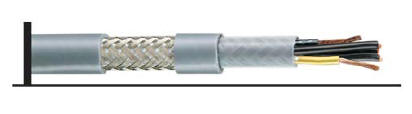

HSLHCH-JZ
| Construction | ||
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/BS 6360 Class 5) | |
| Insulation | HFFR (EN 50290-2/ HD 624.6 S1 /VDE 0207-HI2), Color Code : (VDE 0293): Black (White numbered) | |
| After 3 cores there is number/green marked drain wire. | ||
| Lay-up | All cores as layers | |
| Inner Sheath | HFFR Color: RAL7001 Grey | |
| Screen | Tinned Copper Wire Braiding (70% Coverage) (EN 50288) | |
| Outer Sheath | HFFR (EN 50290-2/ HD 624.7 S1/VDE 0207-HM 2) Outer Sheath Color : RAL7001 Grey | |
| Reference Standards | VDE 0245 | |
| Flame Test | IEC60332-1, VDE 0482-265-2-1 | |
| Smoke Emission | IEC 61034-2/ EN50268 (HD606) / BS7622 | |
| Corrosive Gas Measurement | IEC60754-2/ EN50267 (HD602) | |
Applications
These type of cables which HFFR sheathed and braiding screened is used in are used in office equipment, electronic control systems, air condition systems, powerstations, engineering projects for control, vision and measurement purposes. They are very flexible due to the use of thin multicore copper as conductor. They can be used in wet or dry indoor applications. Because of the HFFR material, they don't burn easily and the flames go off by themselves. The have low smoke intensity and they don't emit poisonous and corrosive gases. They are used in buildings where there are important goods or human population
