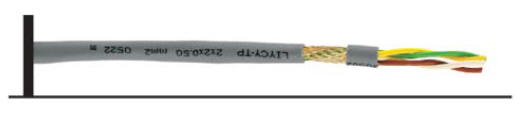

LIYCY-TP
| Cross Section | Loop Resistance | Capacitance.. | Capacitance.. |
| (Max. Ω/km) | (Core/Core nF/Km) | (Core/Screen nF/Km) | |
| 0.14 mm² | 276.0 | 80 | 120 |
| 0.22 mm² | 170.0 | 100 | 150 |
| 0.25 mm² | 155.6 | 100 | 150 |
| 0.34 mm² | 112.0 | 100 | 150 |
| 0.50 mm² | 78.0 | 110 | 170 |
| 0.75 mm² | 52.0 | 110 | 170 |
| 1.00mm² | 39.0 | 120 | 180 |
| 1.50 mm² | 26.6 | 120 | 180 |
| Technical and Electrical Properties (20°C) |
| Operating Voltage | 0.14 mm² ... 0.25 mm² | 250V |
| 0.34 mm² ... 1.50 mm² | 300V/500V | |
| 2.50mm²............... .. | 450V/ 750V | |
| Test Voltage | 0.14 mm² ... 0.25 mm² | 1200V |
| 0.34mm² ... 1.00mm² | 1500V | |
| 1.50mm² ............... . | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Inductance | Approx. 0.65 mH/ Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 7 .5x Cable Diameter |
| Flexible | 15 x Cable Diameter |
| Construction | |
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/8S 6360 Class 5, 0.34 mm² : Column 3) |
| Insulation | PVC (EN 50290·2/HO 21.1.S4/VDE028HI2), Color Coda: DIN 47100 |
| Lay-up | As pairs and each pair as layers |
| Separator | PES Tape |
| Screen | Tinned Copper Wire Braiding (70% Coverage) (EN 50288) |
| Outer Sheath | PVC (EN51J290.2/ H0211 S4/VDE 0281 TM1) OuterSheathColor·RAL7001 Grey |
| Reference Standards | VDE 0812, VDE 0814 |
| FlameTest | IEC60332-1, VDE 0482-265-2-1 |
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.34mm² |
|||||
| 21300402 | 2x2x0.34 | 6.0 | 22.3 | 47 | |
| 21300403 | 3x2x0.34 | 6.7 | 31.2 | 63 | |
| 21300404 | 4x2x0.34 | 7.9 | 41.2 | 85 | |
| 21300405 | 5x2x0.34 | 8.3 | 50.5 | 102 | |
| 21300406 | 6x2x0.34 | 9.1 | 60.0 | 120 | |
| 21300408 | 8x2x0.34 | 9.6 | 76.0 | 148 | |
| 21300410 | 10x2x0.34 | 11.4 | 93.0 | 180 | |
| 21300412 | 12x2x0.34 | 11.8 | 112.0 | 210 | |
| 0.50mm² | |||||
| 21300502 | 2x2x0.50 | 6.7 | 28.5 | 59 | |
| 21300503 | 3x2x0.50 | 7.7 | 39.8 | 82 | |
| 21300504 | 4x2x0.50 | 8.8 | 52.5 | 107 | |
| 21300505 | 5x2x0.50 | 9.2 | 62.5 | 121 | |
| 21300506 | 6x2x0.50 | 10.1 | 73.1 | 143 | |
| 21300508 | 8x2x0.50 | 11.0 | 92.0 | 184 | |
| 21300510 | 10x2x0.50 | 12.8 | 117.8 | 225 | |
| 21300512 | 12x2x0.50 | 14.0 | 138.1 | 266 | |
| 0.75mm² | |||||
| 21300802 | 2x2x0.75 | 7.7 | 39.6 | 77 | |
| 21300803 | 3x2x0.75 | 8.6 | 55.5 | 107 | |
| 21300804 | 4x2x0.75 | 10.0 | 74.6 | 139 | |
| 21300805 | 5x2x0.75 | 10.6 | 90.8 | 168 | |
| 21300806 | 6x2x0.75 | 11.8 | 106.5 | 193 | |
| 21300808 | 8x2x0.75 | 12.6 | 136.0 | 242 | |
| 21300810 | 10x2x0.75 | 14.5 | 166.1 | 296 | |
| 21300812 | 12x2x0.75 | 15.1 | 194.2 | 339 | |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.14mm² |
|||||
| 21300102 | 2x2x0.14 | 4.9 | 13.1 | 33 | |
| 21300103 | 3x2x0.14 | 5.3 | 16.3 | 39 | |
| 21300104 | 4x2x0.14 | 6.0 | 20.5 | 48 | |
| 21300105 | 5x2x0.14 | 6.3 | 25.0 | 57 | |
| 21300106 | 6x2x0.14 | 6.9 | 28.2 | 65 | |
| 21300108 | 8x2x0.14 | 7.4 | 35.4 | 80 | |
| 21300110 | 10x2x0.14 | 8.5 | 44.2 | 99 | |
| 21300112 | 12x2x0.14 | 8.9 | 51.1 | 114 | |
| 0.22mm² | |||||
| 21300202 | 2x2x0.22 | 5.2 | 16.3 | 38 | |
| 21300203 | 3x2x0.22 | 5.7 | 22.5 | 48 | |
| 21300204 | 4x2x0.22 | 6.5 | 28.3 | 58 | |
| 21300205 | 5x2x0.22 | 6.8 | 35.0 | 71 | |
| 21300206 | 6x2x0.22 | 7.5 | 41.0 | 82 | |
| 21300208 | 8x2x0.22 | 8.1 | 49.4 | 98 | |
| 21300210 | 10x2x0.22 | 9.4 | 61.1 | 120 | |
| 21300212 | 12x2x0.22 | 9.7 | 72.5 | 140 | |
| 0.25mm² | |||||
| 21300302 | 2x2x0.25 | 5.4 | 17.7 | 38 | |
| 21300303 | 3x2x0.25 | 5.9 | 24.0 | 50 | |
| 21300304 | 4x2x0.25 | 6.7 | 30.4 | 63 | |
| 21300305 | 5x2x0.25 | 7.0 | 36.2 | 73 | |
| 21300306 | 6x2x0.25 | 7.7 | 43.4 | 78 | |
| 21300308 | 8x2x0.25 | 8.5 | 58.0 | 106 | |
| 21300310 | 10x2x0.25 | 9.8 | 70.0 | 135 | |
| 21300312 | 12x2x0.25 | 10.2 | 81.0 | 155 | |
LIYCY-TP
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) |
|
1.50mm² | ||||
21301502 | 2x2x1.50 | 9.8 | 74.6 | 131 |
21301503 | 3x2x1.50 | 11.0 | 103.7 | 180 |
21301504 | 4x2x1.50 | 12.7 | 134.5 | 233 |
21301505 | 5x2x1.50 | 13.2 | 168.0 | 275 |
21301506 | 6x2x1.50 | 14.7 | 195.0 | 325 |
21301508 | 8x2x1.50 | 15.9 | 255.0 | 415 |
21301510 |
10x2x1.50 | 18.8 | 327.9 | 545 |
21301512 | 12x2x1.50 | 20.2 | 386.0 | 649 |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) |
|
1.00mm² |
||||
21301002 | 2x2x1.00 | 8.3 | 49.9 | 91 |
21301003 | 3x2x1.00 | 9.3 | 74.0 | 129 |
21301004 | 4x2x1.00 | 10.8 | 96.5 | 167 |
21301005 | 5x2x1.00 | 11.4 | 117.0 | 200 |
21301006 | 6x2x1.00 | 12.5 | 136.4 | 231 |
21301008 | 8x2x1.00 | 13.3 | 173.9 | 288 |
21301010 | 10x2x1.00 | 15.4 | 220.4 | 359 |
21301012 | 12x2x1.00 | 16.0 | 254.2 | 417 |
Applications
These type of cables which PVC sheathed and braiding screened are used in industrial applications for signal transmission. They can be easily used With their flexible construction in narrow applications l1ka: electronic control systems of computer or audio systems or in commun1cation sector. electronic circuits. measurement devices. machine des1gn, office equipment. etc. Screening , protects the cable from the outer electrical effects.
