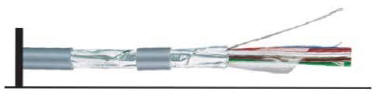

LIY(St)Y
| Cross Section | Conductor Resistance | Capacitance.. | Capacitance.. |
| (Max. Ω/km) | (Core/Core nF/Km) | (Core/Screen nF/Km) | |
| 0.14 mm² | 138.0 | 80 | 120 |
| 0.22 mm² | 85.0 | 100 | 150 |
| 0.25 mm² | 77.8 | 100 | 150 |
| 0.34 mm² | 56.0 | 100 | 150 |
| 0.50 mm² | 39.0 | 110 | 170 |
| 0.75 mm² | 26.0 | 110 | 170 |
| 1.00mm² | 19.5 | 120 | 180 |
| 1.50 mm² | 13.3 | 120 | 180 |
| Technical and Electrical Properties (20°C) |
| Operating Voltage | 0.14 mm² ... 0.25 mm² | 250V |
| 0.34 mm² ... 1.50 mm² | 300V/500V | |
| Test Voltage | 0.14 mm² ... 0.25 mm² | 1200V |
| 0.34mm² ... 1.00mm² | 1500V | |
| 1.50mm² ............... . | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Inductance | Approx. 0.65 mH/ Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 7 .5x Cable Diameter |
| Flexible | 15 x Cable Diameter |
| Construction | |
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/8S 6360 Class 5, 0.34 mm² : Column 3) |
| Insulation | PVC (EN 50290-2/ HD 21.1.S4/VDE0281-T12), Color Code: DIN 47100 |
| Lay-up | All cores as layers |
| Separator | PES Tape |
| Drain Wire | Stranded Tinned Copper |
| Shielding | Al-PES foil |
| Outer Sheath | PVC (EN50290-2/HD21.1.S4/VDE0281lM 1) Outer Sheath Color: RAL 7001 Grey |
| Reference Standards | VDE 0812 |
| FlameTest | IEC60332-1, VDE 0482-265-2-1 |
ABU DHABI DUBAI JAFZA MUSCAT DOHA
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.34mm² |
|||||
| 22100402 | 2x0.34 | 4.5 | 8.8 | 24 | |
| 22100403 | 3x0.34 | 4.8 | 11.7 | 31 | |
| 22100404 | 4x0.34 | 5.2 | 15.2 | 38 | |
| 22100405 | 5x0.34 | 5.7 | 18.3 | 44 | |
| 22100406 | 6x0.34 | 6.2 | 21.5 | 52 | |
| 22100407 | 7x0.34 | 6.2 | 24.7 | 57 | |
| 22100408 | 8x0.34 | 6.5 | 27.8 | 65 | |
| 22100409 | 9x0.34 | 7.2 | 31.2 | 73 | |
| 22100410 | 10x0.34 | 7.7 | 34.5 | 80 | |
|
0.50mm² |
|||||
| 22100502 | 2x0.50 | 5.0 | 10.8 | 30 | |
| 22100503 | 3x0.50 | 5.3 | 15.1 | 37 | |
| 22100504 | 4x0.50 | 5.6 | 19.3 | 45 | |
| 22100505 | 5x0.50 | 6.2 | 23.4 | 54 | |
| 22100506 | 6x0.50 | 6.8 | 27.6 | 64 | |
| 22100507 | 7x0.50 | 6.8 | 31.9 | 75 | |
| 22100508 | 8x0.50 | 7.6 | 36.3 | 81 | |
| 22100509 | 9x0.50 | 8.0 | 40.5 | 89 | |
| 22100510 | 10x0.50 | 8.6 | 44.7 | 97 | |
|
0.75mm² |
|||||
| 22100802 | 2x0.75 | 5.4 | 18.4 | 38 | |
| 22100803 | 3x0.75 | 5.9 | 24.6 | 49 | |
| 22100804 | 4x0.75 | 6.2 | 31.2 | 61 | |
| 22100805 | 5x0.75 | 7.0 | 37.5 | 71 | |
| 22100806 | 6x0.75 | 7.6 | 43.6 | 85 | |
| 22100807 | 7x0.75 | 7.6 | 50.3 | 94 | |
| 22100808 | 8x0.75 | 8.3 | 56.6 | 106 | |
| 22100809 | 9x0.75 | 9.1 | 63.0 | 123 | |
| 22100810 | 10x0.75 | 9.8 | 69.5 | 136 | |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.14mm² |
|||||
| 22100102 | 2x0.14 | 3.6 | 3.8 | 15 | |
| 22100103 | 3x0.14 | 3.8 | 5.1 | 18 | |
| 22100104 | 4x0.14 | 4.0 | 6.4 | 21 | |
| 22100105 | 5x0.14 | 4.3 | 7.7 | 26 | |
| 22100107 | 7x0.14 | 4.7 | 10.3 | 32 | |
| 22100109 | 9x0.14 | 5.4 | 12.8 | 40 | |
| 22100110 | 10x0.14 | 5.7 | 14.1 | 44 | |
| 22100114 | 14x0.14 | 6.3 | 19.3 | 53 | |
| 22100120 | 20x0.14 | 7.4 | 27.0 | 74 | |
| 22100125 | 25x0.14 | 8.2 | 33.5 | 85 | |
|
0.22mm² |
|||||
| 22100202 | 2x0.22 | 3.9 | 6.5 | 19 | |
| 22100203 | 3x0.22 | 4.1 | 8.5 | 23 | |
| 22100204 | 4x0.22 | 4.4 | 10.5 | 28 | |
| 22100205 | 5x0.22 | 4.7 | 12.6 | 32 | |
| 22100206 | 6x0.22 | 5.3 | 14.7 | 38 | |
| 22100207 | 7x0.22 | 5.3 | 16.7 | 41 | |
| 22100209 | 9x0.22 | 6.0 | 20.9 | 50 | |
| 22100210 | 10x0.22 | 6.5 | 22.9 | 57 | |
| 22100216 | 16x0.22 | 7.5 | 35.6 | 80 | |
| 22100220 | 20x0.22 | 8.2 | 44.2 | 98 | |
| 22100225 | 25x0.22 | 9.3 | 54.6 | 121 | |
|
0.25mm² |
|||||
| 22100302 | 2x0.25 | 4.0 | 7.1 | 20 | |
| 22100303 | 3x0.25 | 4.3 | 9.3 | 25 | |
| 22100304 | 4x0.25 | 4.6 | 11.6 | 30 | |
| 22100305 | 5x0.25 | 5.0 | 13.9 | 36 | |
| 22100306 | 6x0.25 | 5.5 | 16.2 | 41 | |
| 22100307 | 7x0.25 | 5.5 | 18.5 | 46 | |
| 22100309 | 9x0.25 | 6.3 | 23.1 | 56 | |
| 22100310 | 10x0.25 | 6.7 | 25.3 | 62 | |
| 22100316 | 16x0.25 | 7.9 | 39.5 | 90 | |
| 22100320 | 20x0.25 | 8.8 | 49.4 | 109 | |
| 22100325 | 25x0.25 | 9,8 | 59.7 | 130 | |
LIY(St)Y
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
1.50mm² |
|||||
| 22101502 | 2x1.50 | 7.0 | 36.8 | 69 | |
| 22101503 | 3x1.50 | 7.4 | 49.6 | 90 | |
| 22101504 | 4x1.50 | 8.1 | 62.2 | 109 | |
| 22101505 | 5x1.50 | 9.0 | 75.3 | 133 | |
| 22101506 | 7x1.50 | 9.8 | 82.7 | 146 | |
| 22101507 | 9x1.50 | 9.8 | 94.3 | 165 | |
| 22101508 | 10x1.50 | 10.8 | 106.9 | 185 | |
| 22101509 | 14x1.50 | 11.7 | 119.5 | 211 | |
| 22101510 | 20x1.50 | 12.6 | 132.6 | 240 | |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
1.00mm² |
|||||
| 22101002 | 2x1.00 | 6.0 | 22.6 | 46 | |
| 22101003 | 3x1.00 | 6.4 | 30.8 | 59 | |
| 22101004 | 4x1.00 | 7.0 | 39.1 | 74 | |
| 22101005 | 5x1.00 | 7.6 | 47.6 | 88 | |
| 22101006 | 6x1.00 | 8.3 | 56.1 | 104 | |
| 22101007 | 7x1.00 | 8.3 | 64.5 | 115 | |
| 22101008 | 8x1.00 | 9.0 | 72.9 | 131 | |
| 22101009 | 9x1.00 | 9.9 | 81.6 | 150 | |
| 22101010 | 10x1.00 | 10.6 | 90.3 | 169 | |
Applications
These Al-PES foiled and PVC insulated cables are used as signal transmission cables in industrial applications. They can be easily used with their flexible construction in narrow applications like: electronic control systems of computer or audio systems or in communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. They are used indoors. Screening , protects the cable from the outer electrical effects.
