• LSF type of UYIStlY-TP cables can be produced as well.

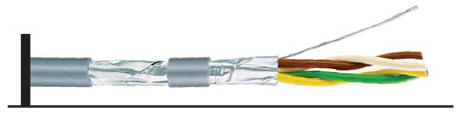

LIY(St)Y-TP
| Technical and Electrical Properties (20°C) |
| Operating Voltage | 0.14 mm² ... 0.25 mm² | 250V |
| 0.34 mm² ... 1.50 mm² | 300V/500V | |
| Test Voltage | 0.14 mm² ... 0.25 mm² | 1200V |
| 0.34mm² ... 1.00mm² | 1500V | |
| 1.50mm² ............... . | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Inductance | Approx. 0.65 mH/ Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 7.x Cable Diameter |
| Flexible | 15 x Cable Diameter |
| Cross Section | Loop Resistance | Capacitance.. | Capacitance.. |
| (Max. Ω/km) | (Core/Core nF/Km) | (Core/Screen nF/Km) | |
| 0.14 mm² | 276.0 | 80 | 120 |
| 0.22 mm² | 170.0 | 100 | 150 |
| 0.25 mm² | 155.6 | 100 | 150 |
| 0.34 mm² | 112.0 | 100 | 150 |
| 0.50 mm² | 78.0 | 110 | 170 |
| 0.75 mm² | 52.0 | 110 | 170 |
| 1.00mm² | 39.0 | 120 | 180 |
| 1.50 mm² | 26.6 | 120 | 180 |
| Construction | |
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/8S 6360 Class 5, 0.34 mm² : Column 3) |
| Insulation | PVC (EN 50290-2/ HD 21.1.S4/VDE0281-T12), Color Code: DIN 47100 |
| Lay-up | As pairs and each pair as layers |
| Separator | PES Tape |
| Drain Wire | Stranded Tinned Copper |
| Shielding | Al-PES foil |
| Outer Sheath | PVC (EN50290-2/HD21.1.S4/VDE0281 TM 1) Outer Sheath Color: RAL 7001 Grey |
| Reference Standards | VDE 0812, VDE 0814 |
| Flame Test | IEC60332-1, VDE 0482-265-2-1 |
ABU DHABI DUBAI JAFZA MUSCAT DOHA
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
LIY(St)Y-TP
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.50mm² |
|||||
| 22300502 | 2x2x0.50 | 6.5 | 19.7 | 49 | |
| 22300503 | 3x2x0.50 | 7.4 | 28.5 | 68 | |
| 22300504 | 4x2x0.50 | 8.5 | 36.9 | 87 | |
| 22300505 | 5x2x0.50 | 9.0 | 46.0 | 104 | |
| 22300506 | 6x2x0.50 | 9.8 | 53.9 | 122 | |
| 22300507 | 7x2x0.50 | 9.8 | 63.3 | 138 | |
| 22300508 | 8x2x0.50 | 10.8 | 71.2 | 158 | |
| 22300510 | 10x2x0.50 | 12.5 | 89.3 | 197 | |
| 0.75mm² | |||||
| 22300802 | 2x2x0.75 | 7.5 | 31.5 | 68 | |
| 22300803 | 3x2x0.75 | 8.4 | 44.3 | 92 | |
| 22300804 | 4x2x0.75 | 9.7 | 57.2 | 117 | |
| 22300805 | 5x2x0.75 | 10.3 | 70.2 | 144 | |
| 22300806 | 6x2x0.75 | 11.5 | 82.8 | 171 | |
| 22300807 | 7x2x0.75 | 11.5 | 96.2 | 191 | |
| 22300808 | 8x2x0.75 | 12.3 | 109.1 | 217 | |
| 22300810 | 10x2x0.75 | 14.2 | 136.1 | 270 | |
| 1.00mm² | |||||
| 22301002 | 2x2x1.00 | 8.1 | 39.4 | 80 | |
| 22301003 | 3x2x1.00 | 9.1 | 56.4 | 110 | |
| 22301004 | 4x2x1.00 | 10.6 | 73.5 | 145 | |
| 22301005 | 5x2x1.00 | 11.2 | 91.1 | 175 | |
| 22301006 | 6x2x1.00 | 12.3 | 108.7 | 204 | |
| 22301007 | 7x2x1.00 | 12.3 | 126.3 | 232 | |
| 22301008 | 8x2x1.00 | 13.1 | 143.5 | 260 | |
| 22301010 | 10x2x1.00 | 15.2 | 179.5 | 322 | |
| 1.50mm² | |||||
| 22301502 | 2x2x1.50 | 9.6 | 56.7 | 112 | |
| 22301503 | 3x2x1.50 | 10.8 | 82.2 | 157 | |
| 22301504 | 4x2x1.50 | 12.5 | 107.9 | 205 | |
| 22301505 | 5x2x1.50 | 13.0 | 133.5 | 245 | |
| 22301506 | 6x2x1.50 | 14.5 | 160.3 | 292 | |
| 22301507 | 7x2x1.50 | 14.5 | 186.0 | 327 | |
| 22301508 | 8x2x1.50 | 15.7 | 213.6 | 377 | |
| 22301510 | 10x2x1.50 | 18.4 | 265.2 | 479 | |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.14mm² |
|||||
| 22300102 | 2x2X0.14 | 4.7 | 6.5 | 24 | |
| 22300103 | 3x2X0.14 | 5.1 | 9.2 | 30 | |
| 22300104 | 4x2X0.14 | 5.8 | 11.9 | 40 | |
| 22300105 | 5x2X0.14 | 6.1 | 14.5 | 46 | |
| 22300106 | 6x2X0.14 | 6.6 | 17.1 | 52 | |
| 22300107 | 7x2X0.14 | 6.6 | 19.8 | 57 | |
| 22300108 | 8x2X0.14 | 7.2 | 22.5 | 64 | |
| 22300110 | 10x2X0.14 | 8.2 | 27.8 | 77 | |
| 0.22mm² | |||||
| 22300202 | 2x2X0.22 | 5.2 | 10.6 | 31 | |
| 22300203 | 3x2X0.22 | 5.7 | 14.8 | 41 | |
| 22300204 | 4x2X0.22 | 6.4 | 19.0 | 50 | |
| 22300205 | 5x2X0.22 | 6.7 | 23.2 | 60 | |
| 22300206 | 6x2X0.22 | 7.3 | 27.6 | 68 | |
| 22300207 | 7x2X0.22 | 7.3 | 31.6 | 75 | |
| 22300208 | 8x2X0.22 | 7.9 | 35.9 | 85 | |
| 22300210 | 102Xx0.22 | 9.1 | 44.6 | 104 | |
| 0.25mm² | |||||
| 22300302 | 2x2X0.25 | 5.3 | 11.7 | 32 | |
| 22300303 | 3x2X0.25 | 5.8 | 16.3 | 42 | |
| 22300304 | 4x2X0.25 | 6.6 | 20.9 | 53 | |
| 22300305 | 5x2X0.25 | 6.9 | 25.7 | 63 | |
| 22300306 | 6x2X0.25 | 7.6 | 30.4 | 73 | |
| 22300307 | 7x2X0.25 | 7.6 | 35.3 | 82 | |
| 22300308 | 8x2X0.25 | 8.1 | 40.0 | 92 | |
| 22300310 | 10x2X0.25 | 9.5 | 49.8 | 113 | |
| .34mm² | |||||
| 22300402 | 2x2X0.34 | 5.9 | 15.3 | 42 | |
| 22300403 | 3x2X0.34 | 6.5 | 21.7 | 52 | |
| 22300404 | 4x2X0.34 | 7.6 | 28.2 | 69 | |
| 22300405 | 5x2X0.34 | 8.0 | 34.8 | 83 | |
| 22300406 | 6x2X0.34 | 8.8 | 41.4 | 97 | |
| 22300407 | 7x2X0.34 | 8.8 | 48.1 | 108 | |
| 22300408 | 8x2X0.34 | 9.3 | 54.7 | 120 | |
| 22300410 | 10x2X0.34 | 11.1 | 68.2 | 159 | |
Applications
These Al-PES foiled and PVC insulated cables are used as signal transmission cables in industrial applications. They can be easily used with their flexible construction in narrow applications like: electronic control systems of computer or audio systems or in communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. They are used indoors. Screening , protects the cable from the outer electrical effects.
