RDF 500kg, RSF 1000kg, (for ROF racks deep 1200mm 1000kg), RHF 1500kg, color black RAL 9005 (optionally light gray RAL 7035). For detailed technical information on RSF, RDF, RHF and ROF racks please refer to appropriate data sheets.
RSG4‑42‑19/74‑LF
RSG4‑42‑19/92‑LF
RSG4‑45‑19/50‑LF
RSG4‑45‑19/74‑LF
RSG4‑45‑19/92‑LF
RSG4‑47‑19/50‑LF
RSG4‑47‑19/74‑LF
RSG4‑47‑19/92‑LF
ROF‑45‑60/100‑WWWWA‑205‑H
ROF‑48‑60/100‑WWWWA‑205‑H
ROF‑42‑60/120‑WWWWA‑20A‑H
ROF‑42‑80/10C‑WWWWA‑205‑H
ROF‑45‑80/10C‑WWWWA‑205‑H
ROF‑48‑80/10C‑WWWWA‑205‑H
ROF‑42‑80/12C‑WWWWA‑20A‑H
RHF‑42‑80/10P‑WWWWA‑2EF‑H
RDF‑45‑80/10C‑WWWWA‑2H5‑H
RDF‑48‑80/10C‑WWWWA‑2H5‑H
RDF‑42‑80/12C‑WWWWA‑2H5‑H
RSF‑45‑60/10T‑WWWWA‑2EA‑H
RSF‑48‑60/10T‑WWWWA‑2EA‑H
RSF‑42‑60/12T‑WWWWA‑2EA‑H
RSF‑42‑80/10U‑WWWWA‑2EA‑H
RSF‑45‑80/10U‑WWWWA‑2EA‑H
RSF‑48‑80/10U‑WWWWA‑2EA‑H
RSF‑42‑80/12U‑WWWWA‑2EA‑H
Rear vented door (83% perf. rate) with multipoint swivel handle lock (universal key)
Removable sheet steel side panels with lock (universal key)
Two pairs of 19" vertical sliding extrusions
Top and bottom openings for cable entry; (only ROF racks with fixed plates)
Adjustable feet as standard; recommended plinth or plinth with filter (not included)
All the recommendations indicated in this brochure are typical guidelines to be used as a starting point for planning. Results may vary dependant on the specifics and related variables for each design. Guidance is available from Conteg product specialists to resolve unique design challenges.
42U to 48U 600 mm or 800 mm wide cabinets 1000 mm or 1200 mm
deep cabinets
Air separation frames 150 mm or 200 mm deep
83% super vented front and rear door
1200 mm or 1800 mm aisle spacing
Double brush grommets for cable entries
Blanking panels for all vacant equipment mounting locations in racks
Modular plinths Replace adjustable feet and are used as stabilizing and aesthetic element
Air separation frames Prevent by‑pass airflow between column and 19" extrusion to optimize cooling of equipment
Brackets Needed when vertical PDU installation into rack is planned
Blank panels Prevent cold air by‑pass through unused U positions
RDF series 19" distribution racks PREMIUM rack series provides maximum compatibility with Targeted Cooling solutions developed for cabling support, load rating up to 500kg.
RHF series 19" distribution racks PREMIUM rack series provides ultra high load rating up to 1500kg
ROF series 19" distribution racks OPTIMAL rack series, highly configurable with load rating up to 500kg, for racks deep deep 1200mm 1000kg
RSG4 series 19" four post open frames Alternative to racks for housing equipment, load rating up to 1500kg
only. Within the data center / server room no barriers are applied to separate hot and cold air streams. This makes this solution very simple, but creates potentially future problems when high density applications are housed in the cabinets. However for traditional Hot / Cold Aisle design a central room cooling with perimeter positioned close control units is recommended. Such units are not presented in this catalog, however we are ready to supply you also with this product as we collaborate with a global leader in precision cooling.
RSG open frame series (two and four posts) is a racks alternative which gives you unmatched access to installed equipment
Rack design in hot cold aisle arrangement requires front vented (83%) & rear vented (83%) door to easily enter the rack
Cold air is delivered to the cold aisle using the raised floor as a cold air handling plenum, the hot air is blown out on the back side to the hot aisle
As an alternative to the cabinets, open frames can be used to house all the equipment. CONTEG has developed a special high‑load open frame series called RSG. It is the best choice when unlimited access to the installed equipment is required while safe free‑dust environment can
As an alternative to the cabinets, open frames can be used to house all the equipment. CONTEG has developed a special high‑load open frame series called RSG. It is the best choice when unlimited access to the installed equipment is required while safe free‑dust environment can be

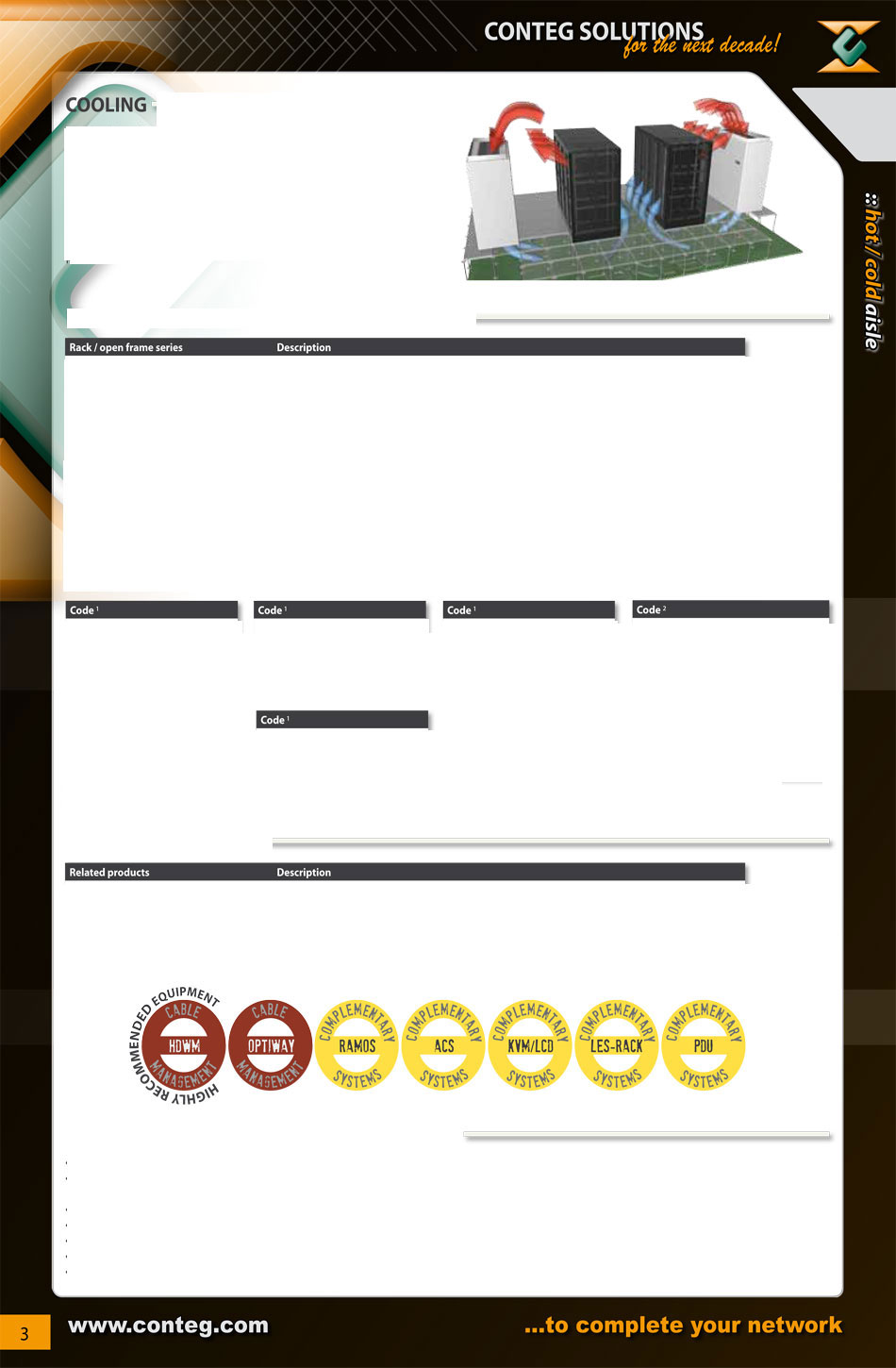

RSF, RDF, RHF and ROF rack series are strongly recommended to be used in hot / cold aisle data center design. For maximum efficiency, highly perforated doors are required; CONTEG test data shows a significant improvement to airflow in the case of 83% super‑vented doors being used over standard perforated door types. In order to make the best use of available cold air it is

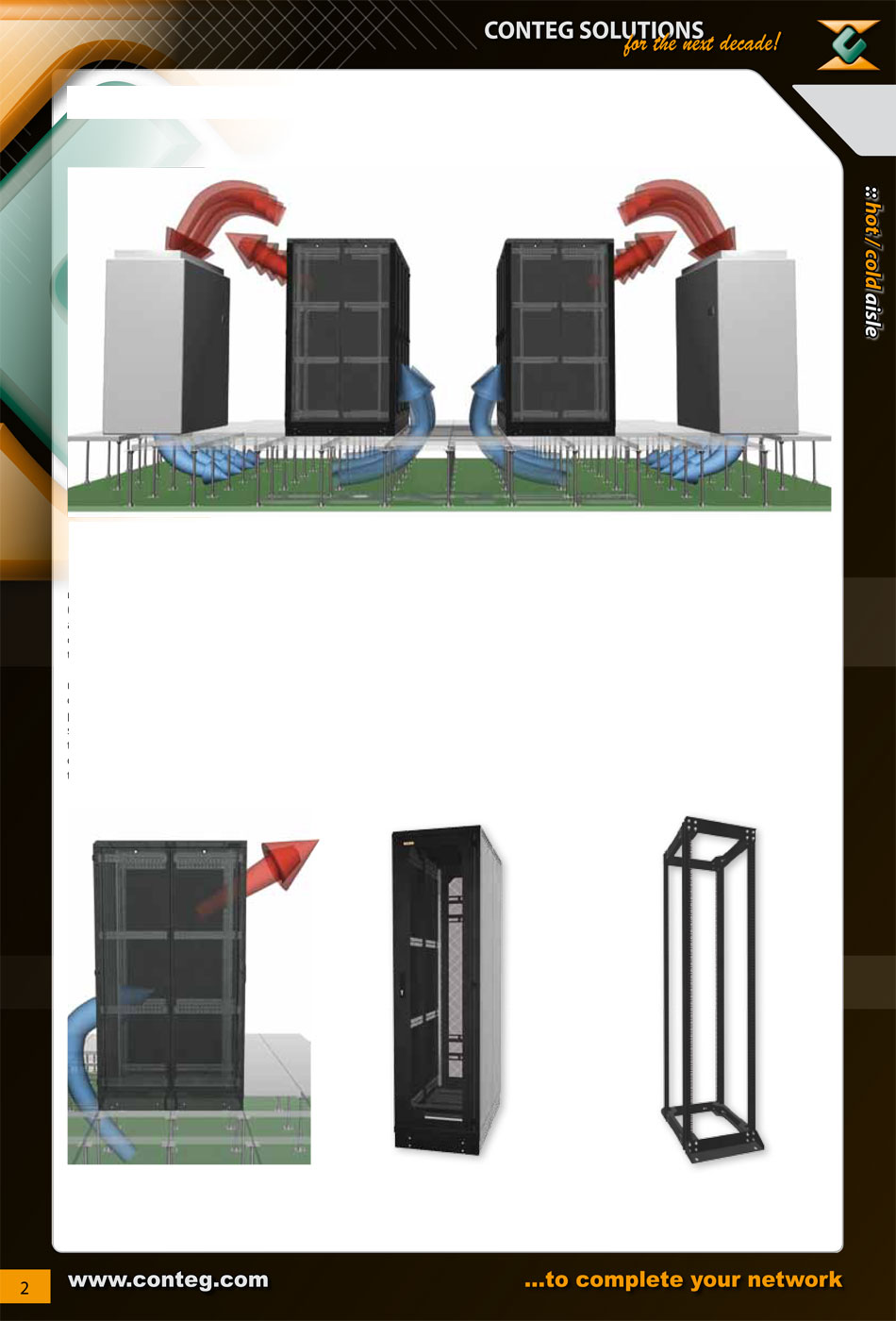

The Hot / Cold Aisle approach is considered to be the norm for data center designs. Racks are aligned front to front and cold air is delivered using the raised floor as a cold air handling space (plenum).
HOT / COLD AISLE
HOT / COLD AISLE
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
version: 08-04-2011
