UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543

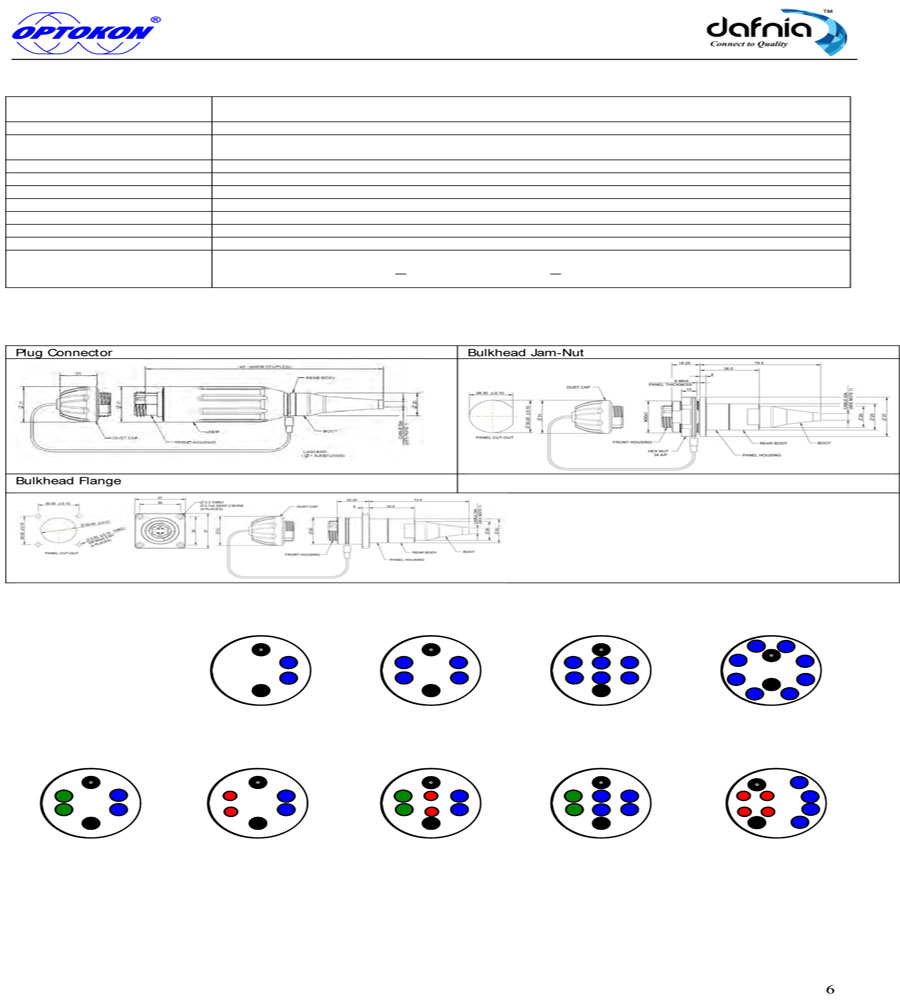

4 ELECTRICAL (#20)
2 POWER (#16)
2 POWER (#16)
2 SIGNAL (#20)
2 SIGNAL (#20)
2 POWER (#16)
All tests compliant to EN 186000-1 specifications
9/125 @ 1310/1550 nm 1.5 dB max
9/125 @ 1310/1550 nm > 30
Size 20 & size 16 MIL-C-39029. Contact resistance <4 mΩ. Operating voltage 1000 VAC.
5A (short term 15A)
-40 to +70 °C
-55 to +85 °C
up to 2 m depth
10-500 Hz, 0.75 amplitude @ 10 G acceleration
500 falls onto concrete from 1.2 m height
4000 bumps @ 40 G acceleration
Tensile of 1500 N, cable dependent
Compatible with tactical cable:
Plug < 6 mm o/d , Bulkhead < 3 mm o/d
Other cable sizes available on request
Return Loss
Electrical power contacts
Operating current
Operating temperature
Storage temperature
Water immersion
Vibration Sinusoidal
Free fall resistance
Bump resistance
Tensile Strength
Cable Variations
* Advanced expanded beam technology
* Hermaphroditic interconnection
* 1 to 8 fiber channels Singlemode or Multimode
* Hybrid electrical & fiber channel options available
* Rugged field repairable connector design
* keyed boot for ‘Blind Mating’
* HMA-S is fully compatible with another producers
of HMA connector and with Pro Beam Senior
connector
Benefits:
* Best optical performance available
* No adaptors necessary
* Combined fiber and electrical channels
* Inexpensive, low downtime field repair
* Easy clean, no special tools
Application:
* Broadcast
* Military communications
* Industrial
* Petrochemical
Materials:
* Anodized high grade lightweight alloy
* Neoprene BR568 Grip ring

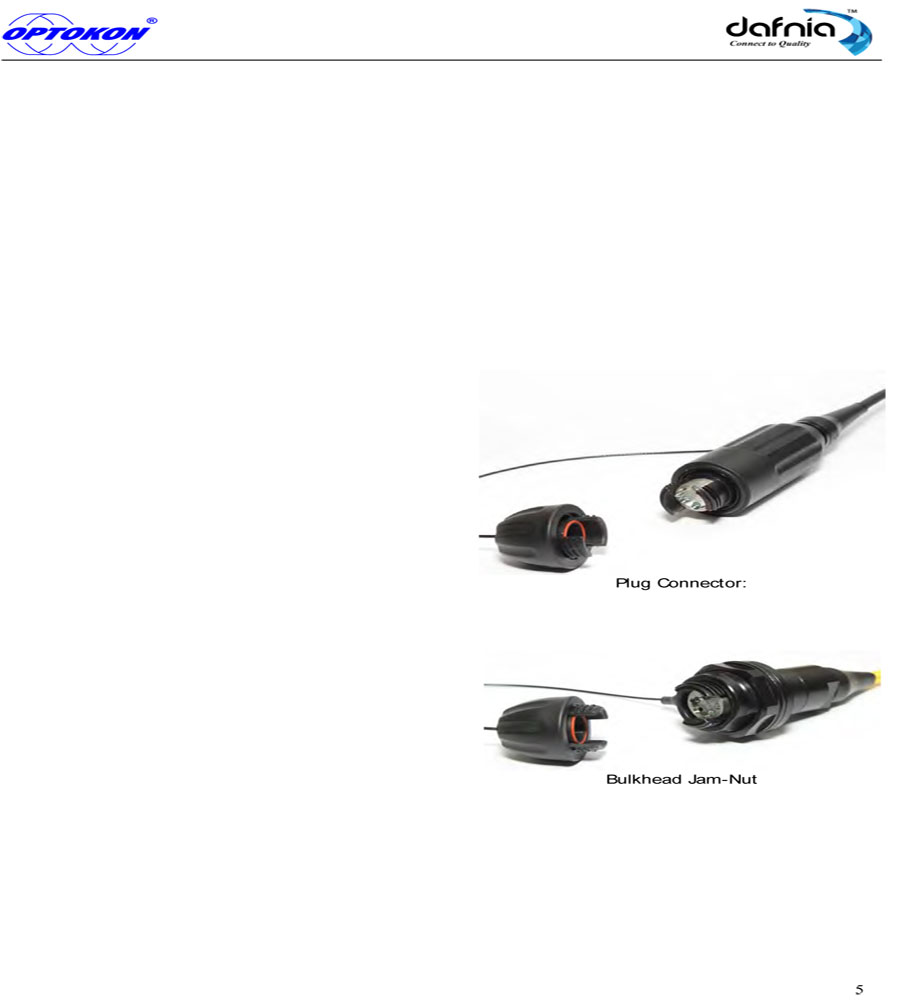

HMA-S Series connector
Description:
The OPTOKON HMA-S connector series, a large size „Expanded Beam“ connector is designed for connection of the nodes of tactical network by the help of cables with optical fibers. The used expanded beam technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions. Additionally to military optical networks the HMA-S is suited for a vast array of applications, like heavy industry connections, petrochemical application, broadcasting temporary
optical lines.
The innovative designs ensure its ability for deployment in the toughest environments where high performance and total reliability are critical. Benefiting from expanded beam technology the precision optical alignment system creates immunity from water, mud, dust oil and other contaminants.
The HMA-S Hermaphroditic coupling eliminates the need for adaptors and male and female mating halves. Hermaphroditic housings allow for rapid deployment, creating low loss Singlemode and Multimode daisy chained links in a variety of planforms ranging from simplex fiber to a four fibers. The OPTOKON HMA-S is ideally suited for environmental extremities where low maintenance and quick
repairabilty is necessary.
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
Duplex
2 channel 2.8x5.5 mm
4 channel 2x 2.8x5.5 mm
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
Duplex
2 channel 2.8x5.5 mm
4 channel 2x 2.8x5.5 mm
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
Duplex
2 channel 2.8x5.5 mm
4 channel 2x 2.8x5.5 mm
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
Duplex
2 channel 2.8x5.5 mm
4 channel 2x 2.8x5.5 mm
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
* Broadcast
* Military communications
* Industrial
* Petrochemical
1 fiber 2 fibers 4 fibers
9/125 @ 1310/1550 nm >32 dB
3000 matings minimum
-55 to +85 °C
-55 to +85 °C
2 m depth duration 24 Hours
10-500 Hz, 3 directions, 0.75 mm amplitude @ 10 G acceleration
500 falls from 1.2 m height
4000 bumps @ 40 G acceleration
Tensile of 1500 N, cable dependent
Compatible with tactical cable: Plug: 5.0-5.5 mm, Bulkhead: 2.8-5.5 mm o/d
Other cable sizes available on request
Return Loss
Durability
Operating temperature
Storage temperature
Water immersion
Vibration Sinusoidal
Free fall resistance
Bump resistance
Tensile Strength
Cable Variations
* Advanced expanded beam technology
* MIL-DTL-83526 specification
* Hermaphroditic interconnection
* 1 to 4 fiber channels Singlemode or
Multimode
* Rugged field repairable connector design
* Keyed boot for ‘Blind Mating’
Benefits:
* Best optical performance available
* No adaptors necessary
* Inexpensive, low downtime field repair
* Easy clean, no special tools
Materials:
* Black anodized high grade lightweight alloy
* Neoprene BR568 Grip ring

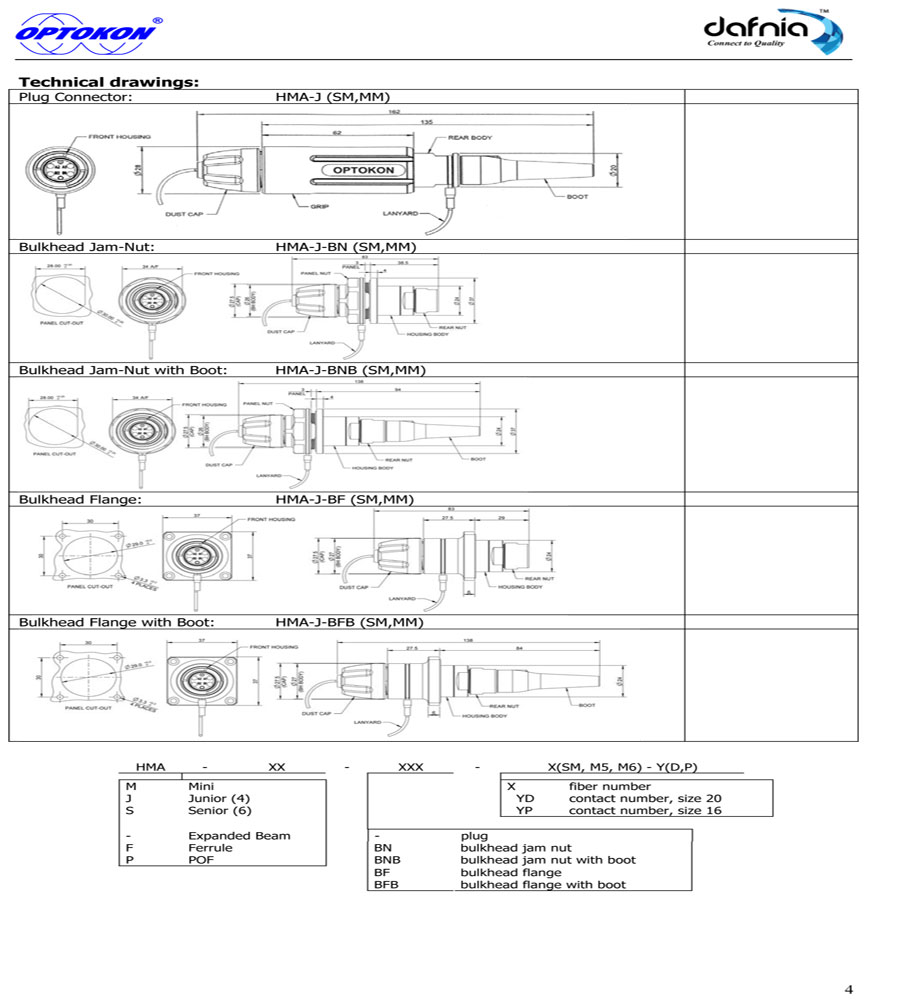

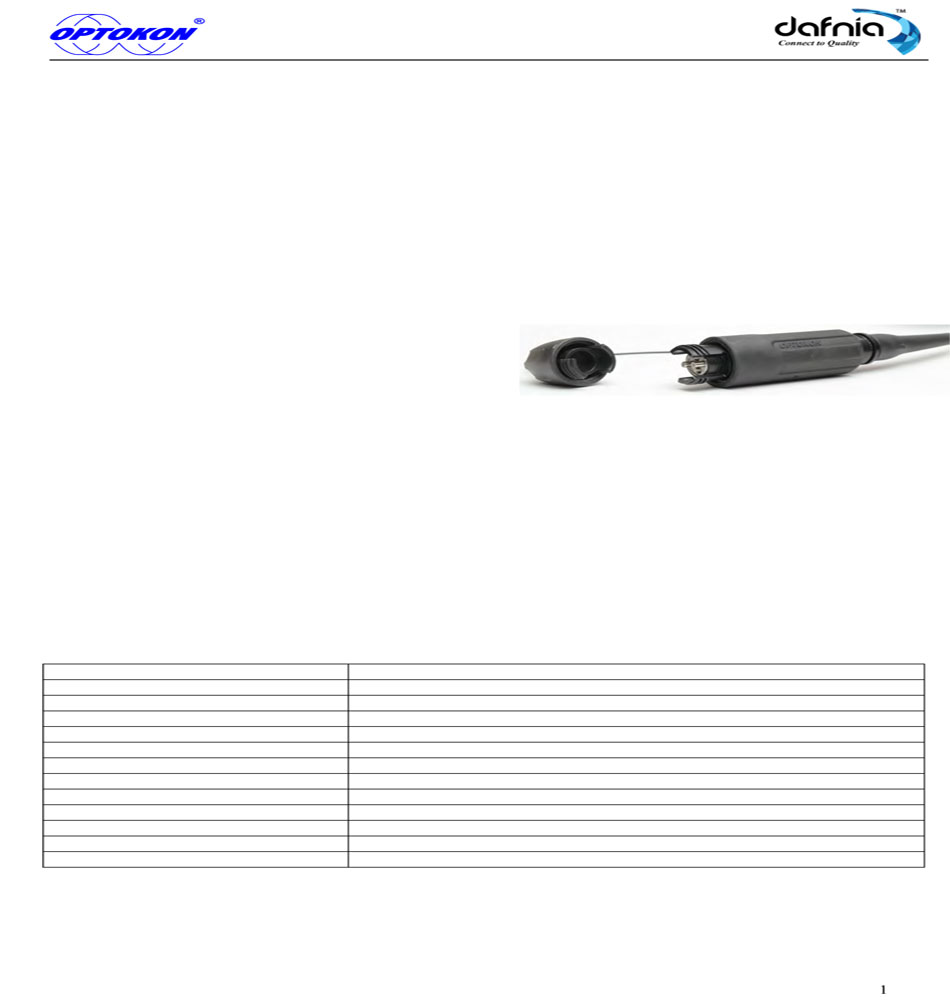

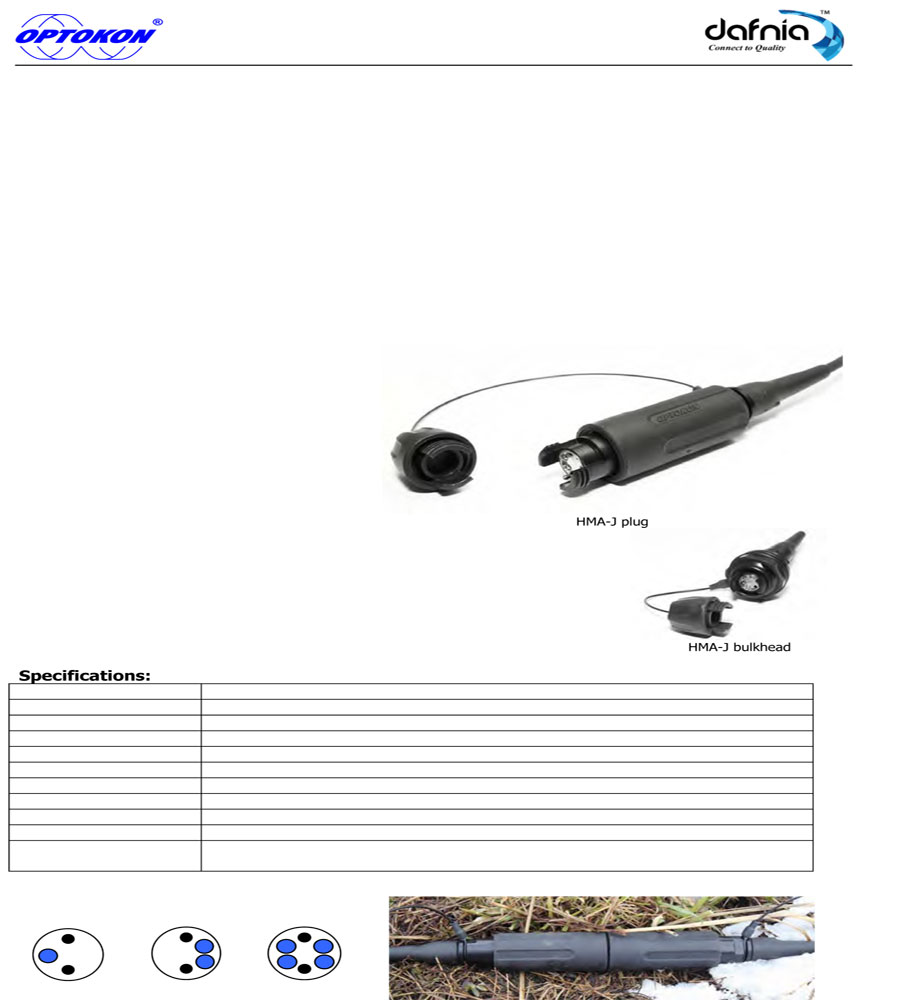

HMA-J Series connector
Description:
The OPTOKON HMA-J connector series, a medium size „Expanded Beam“ connector is designed for connection of the nodes of tactical network by the help of cables with optical fibers. The used expanded beam technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions. Additionally to military optical networks the HMA-J is suited for a vast array of applications, like heavy industry connections, petrochemical application, broadcasting temporary optical lines.
The innovative designs ensure its ability for deployment in the toughest environments where high performance and total reliability are critical. Benefiting from expanded beam technology the precision optical alignment system creates immunity from water, mud, dust oil and other contaminants.
The HMA-J Hermaphroditic coupling eliminates the need for adaptors and male and female mating halves. Hermaphroditic housings allow for rapid deployment, creating low loss Singlemode and Multimode daisy chained links in a variety of planforms ranging from simplex fiber to a four fibers. The OPTOKON HMA-J is ideally suited for environmental extremities where low maintenance and quick repairabilty is necessary.
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
Duplex
2 channel 2.8x5.5 mm
4 channel 2x 2.8x5.5 mm
MIL-TAC D
2 channel Ø 5.0 mm
4 channel Ø 5.5 mm
9/125 @ 1310/1550 nm 0.5 dB typ
9/125 @ 1310/1550 nm > 45 dB (typical 48 dB)
-40 to +70 °C
-55 to +85 °C
up to 2 m depth, IP 68
10-500 Hz, 0.75 amplitude @ 10 g acceleration
100 g, 6 ms
1000 cycles
Tensile of 500 N, cable dependent
500 Hours Salt Spray
Compatible with tactical cable: ≤ 5.5 mm outer diameter
Other cable sizes available on request
Return Loss
Operating temperature
Storage temperature
Water immersion
Vibration Sinusoidal
Shock resistance
Mating durability
Tensile Strength
Corrosion Resistance
Cable Variations
HMA-JF-2XX 2 fibers plug
HMA-JF-4XX 4 fibers plug
HMA-JF-BN-2XX 2 fibers bulkhead, jam nut
HMA-JF-BN-4XX 4 fibers bulkhead, jam nut
* Ruggedised field design
* Hermaphroditic interconnection
* 2 - 4 Fiber channels
* Singlemode and/or Multimode
Benefits:
* No adaptors necessary
* Excellent transmission parameters
* Lightweight
* SFF ferrule termination procedure
Application:
* Military communications
* Telecomms
* Surveillance
* Broadcast

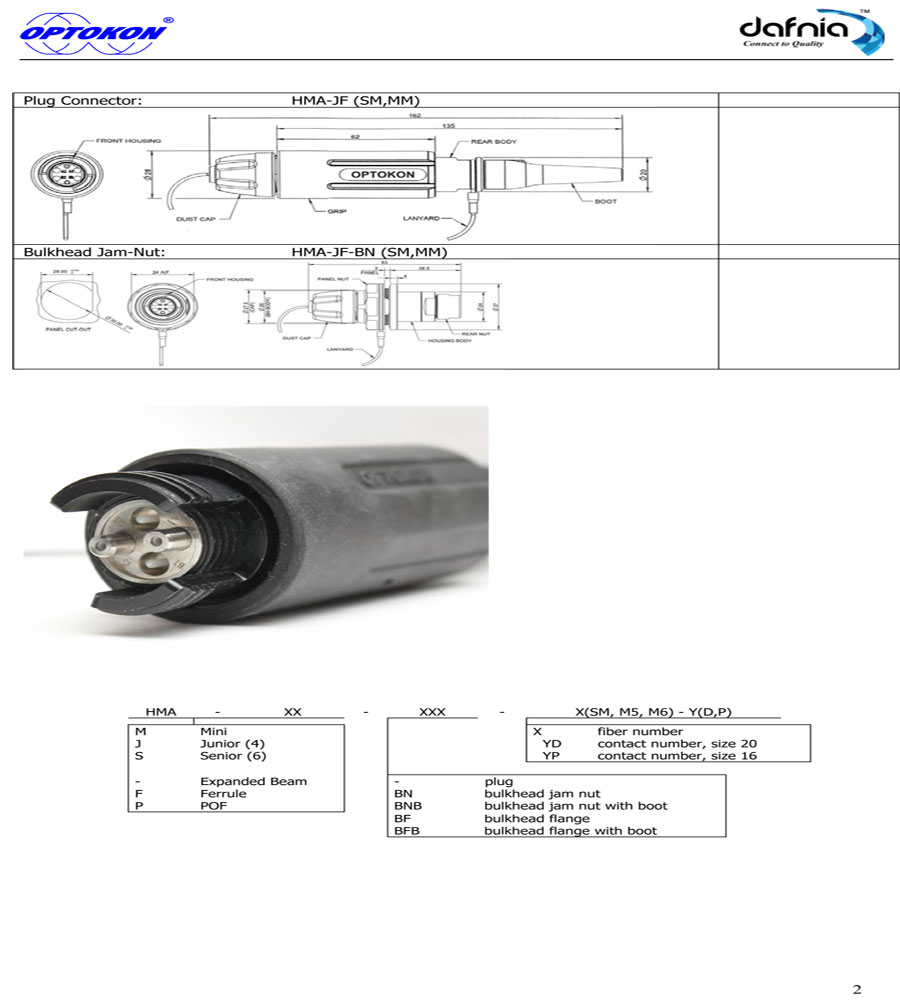

HMA-JF Series
Harsh environmental ferrule connector
Description:
The new HMA-JF connector, to compliment the existing and wide range of harsh environment products. The HMA-JF uses the design of 1.25 mm ferrules, already industry proven in both singlemode and multimode applications. The HMA-JF ideally suits long distance military applications where the excellent transmission parameters are desired. The unique design of the HMA-JF allows users to ensure high performance of SFF, Small Form Factor optical connectors in the field conditions.
Rapid deployment and ‘daisy chaining’ is achieved with hermaphroditic designs, eliminating the need for adaptors or male and females mating halves. Hermaphroditic interconnection; facilitates expansion of cable distances by insertion of standard cable harnesses. The HMA-JF is IP68 rated and fully sealed.
