CA‑RS‑42/90‑H
CA‑RS‑42/80‑H
CA‑RS‑42/60‑H
Top cover and vertical side panels, for 600mm wide/42U high2 rack design, sheet steel parts in RAL 9005
Top cover and vertical side panels, for 800mm wide/42U high2 rack design, sheet steel parts in RAL 9005
Top cover and vertical side panels, for 600+300mm (covers neighbouring section) wide/42U high2 rack design, sheet steel parts in RAL 9005
Top cover and vertical side panels, for 800+300mm (covers neighbouring section) wide/42U high2 rack design, sheet steel parts in RAL 9005
The modular roof sections are bolted onto the top of racks to prevent mixing of cooled air and warm exhaust. The assembly is made from 1.5mm powder coated steel and is available in widths of 600, 800, 900 & 1100mm to suit all deployment options. The vertical sections feature a glass insert panel to allow easy access to the top of installed racks whilst allowing maximum light into the cold aisle. The roof panel is made from 6mm clear polycarbonate to allow easy integration of fire suppression systems into the cold aisle..
CONTAINED AISLE - ROOF
Double door and doorframe; width 1200mm1, height 2212/2245mm (door/doorframe), color powder coated RAL7045/7040, compatible with all ROF family racks; applicable in contained cold aisle design with height 42 and 45U
Modular Contained Aisle system is available upon request. This system is the ideal solution when a row of racks with different heights or even with gaps because of missing racks is required to be contained. System is based on self‑supporting construction with clear polycarbonate panels on the top of the roof. Vertical side sections of the roof feature PVC foil strips, which can be easily cut to the required length. Modular Contained Aisle can work with standard aisle door (see above) or with PVC foil strips instead of standard door. Contact us for more information.
Automatic door handle system for CA‑DS‑42‑45/120, including engines, control buttons & needed accessories

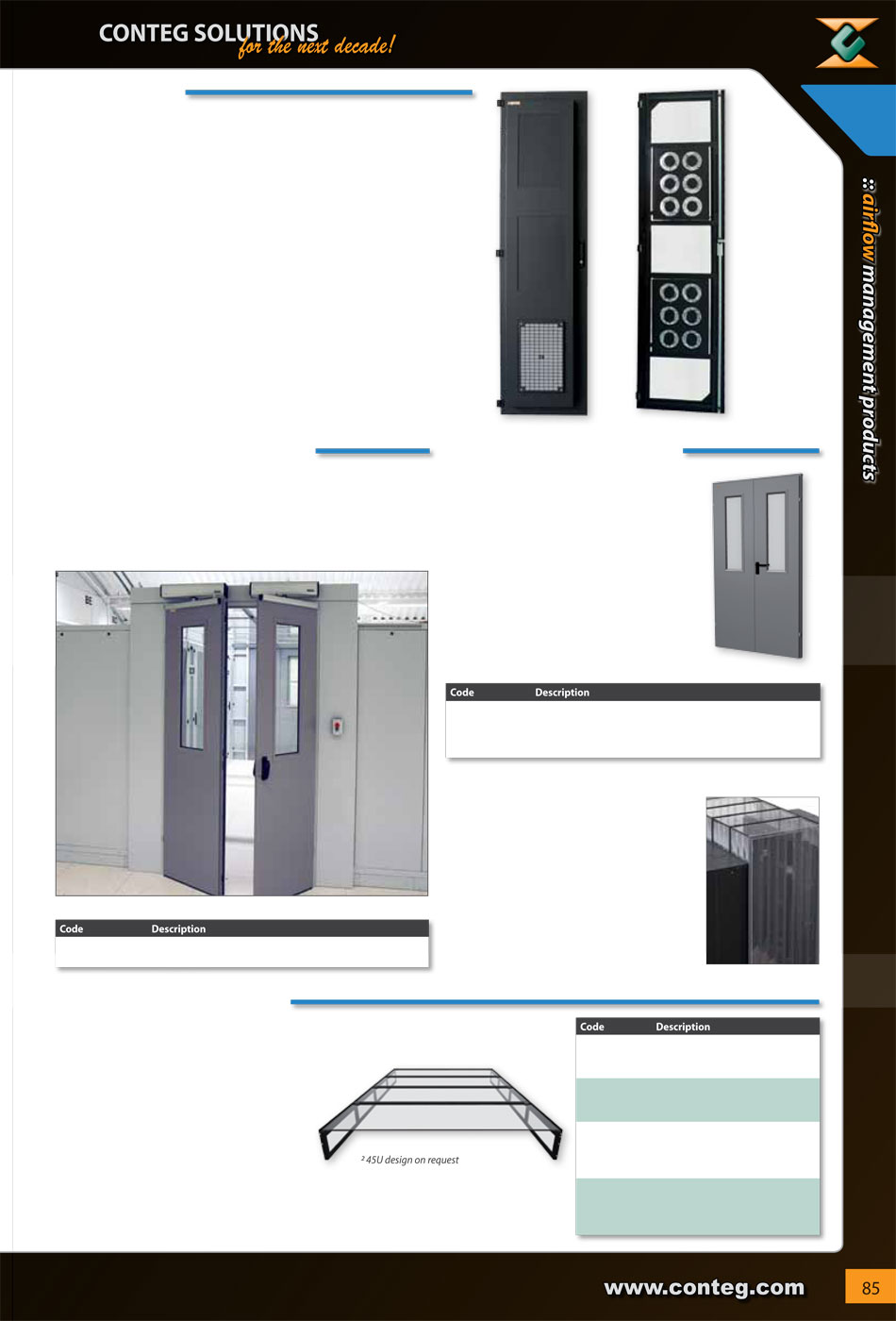

The contained aisle door assembly comprises a metal frame equipped with dual leaf opening doors (2212 x 620mm) to allow access into the contained cold aisle. The door frame is easily assembled on site and attached to the end of the row of racks, after installation of the sealing strip, the doors can be easily hung to provide air separation, security and comfortable access. The doors feature a large glass window for clear vision into the cold aisle. Doors are supplied with handle and locking mechanisms as standard, options for automatic door handling systems are available.
CONTAINED AISLE - DOOR
For easy and secure automated access to the Contained Cold Aisle we have developed the Automatic Door Handle. Using the Automatic Door Handle the Contained Cold Aisle doors can be controlled and opened/closed either locally via push buttons or integrated with your access control system. The ADH can also be integrated with RAMOS to provide alarms and further increase the flexibility of the system.
AUTOMATIC DOOR HANDLE
each with 6 fans (for racks of 600mm width) and 9 fans (for racks of 800mm
width). Front mounted active door ensures effective air delivery in to the
rack. The rear mounted active door removes heated air from the rack. Active
doors can be where higher density heat loads are required by augmenting
the delivery or extraction of air for cooling purposes.
Perforated sheet metal or vented door
Preparation for mounting of 3 ventilation units, each with 6 fans
Multipoint swivel handle lock
Universal keys
Colour design powdered paint RAL 7035 or RAL 9005
Apply the appropriate codes in positions describing door type/door lock
type in the rack ordering matrix:
JW for sheet steel perforated door, ready for up to 3 x 6 (3 x 9)‑position
ventilation unit, multipoint swivel handle lock, universal key
KW for vented door, ready for up to 3 x 6 (3 x 9)‑position ventilation unit,
multipoint swivel handle lock, universal key
ACTIVE DOOR
Possible to install:
a) on side or top of wall‑mounting rack special perforation needed
(ordering code of the wall mounting rack to be extended:
‑VH for 2x side perforation or TH for 2x top cover perforation)
b) in top or bottom frame of distribution rack
‑ requires perforated gland plate DP‑VE‑ROV2 or DP‑VE‑ROV4
Mounting kit included
Without thermostat
Code: DP‑VE‑01
unit is not used.

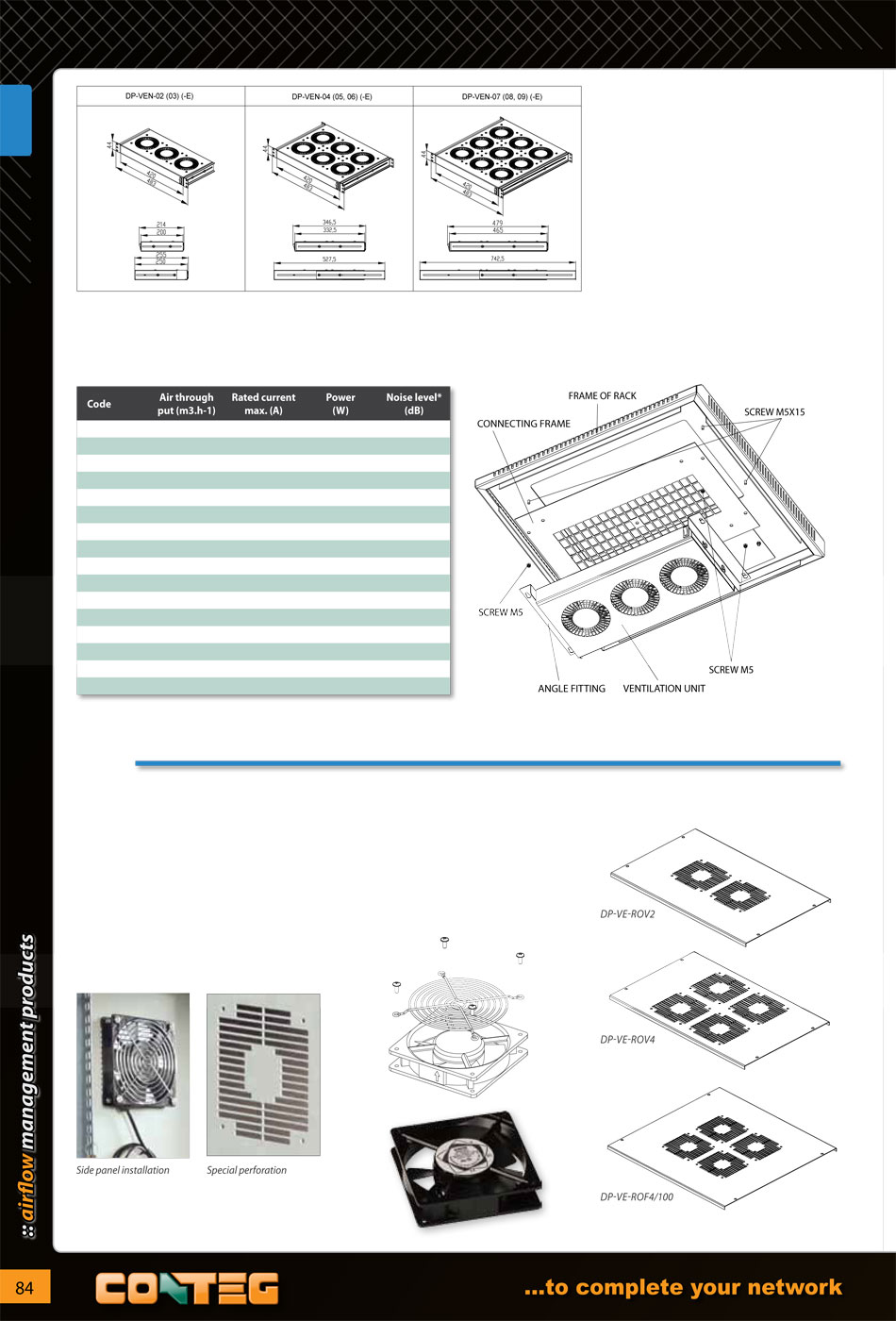

FANS
DP‑VEN‑02 210 0,18 38 48,0
DP‑VEN‑03 315 0,27 57 49,8
DP‑VEN‑04 420 0,36 76 51,0
DP‑VEN‑05 525 0,45 95 52,0
DP‑VEN‑06 630 0,54 114 52,8
DP‑VEN‑07 735 0,63 133 53,5
DP‑VEN‑08 840 0,72 152 54,0
DP‑VEN‑09 945 0,81 171 54,5
DP‑VEN‑02‑E 330 0,28 44 53,0
DP‑VEN‑03‑E 495 0,42 66 54,8
DP‑VEN‑04‑E 660 0,56 88 56,0
DP‑VEN‑05‑E 825 0,70 110 57,0
DP‑VEN‑06‑E 990 0,84 132 57,8
DP‑VEN‑07‑E 1155 0,98 154 58,5
DP‑VEN‑08‑E 1320 1,12 176 59,0
DP‑VEN‑09‑E 1485 1,26 198 59,6
DP‑BP‑03 1 19" ‑‑
DP-BP-03-D 1 19"
Description:
Two to nine fans
Possible to install:
a) in 19" extrusions horizontally
b) in top or bottom frame of free‑standing rack
Connecting kit for ventilation unit is needed
when installing in top or bottom frame
Temperature range ‑10°C to 55°C
Thermostat in the range 0°C 60°C included;
optionally no thermostat
Voltage range 230V/50Hz (optionally 48V DC)
Protection category to EN 60 529 IP 20
Color powder coated RAL (standard RAL 9005)
Enhanced option DP‑VEN‑xx‑E
Used to force airflow through a rack
to assist with cooling.

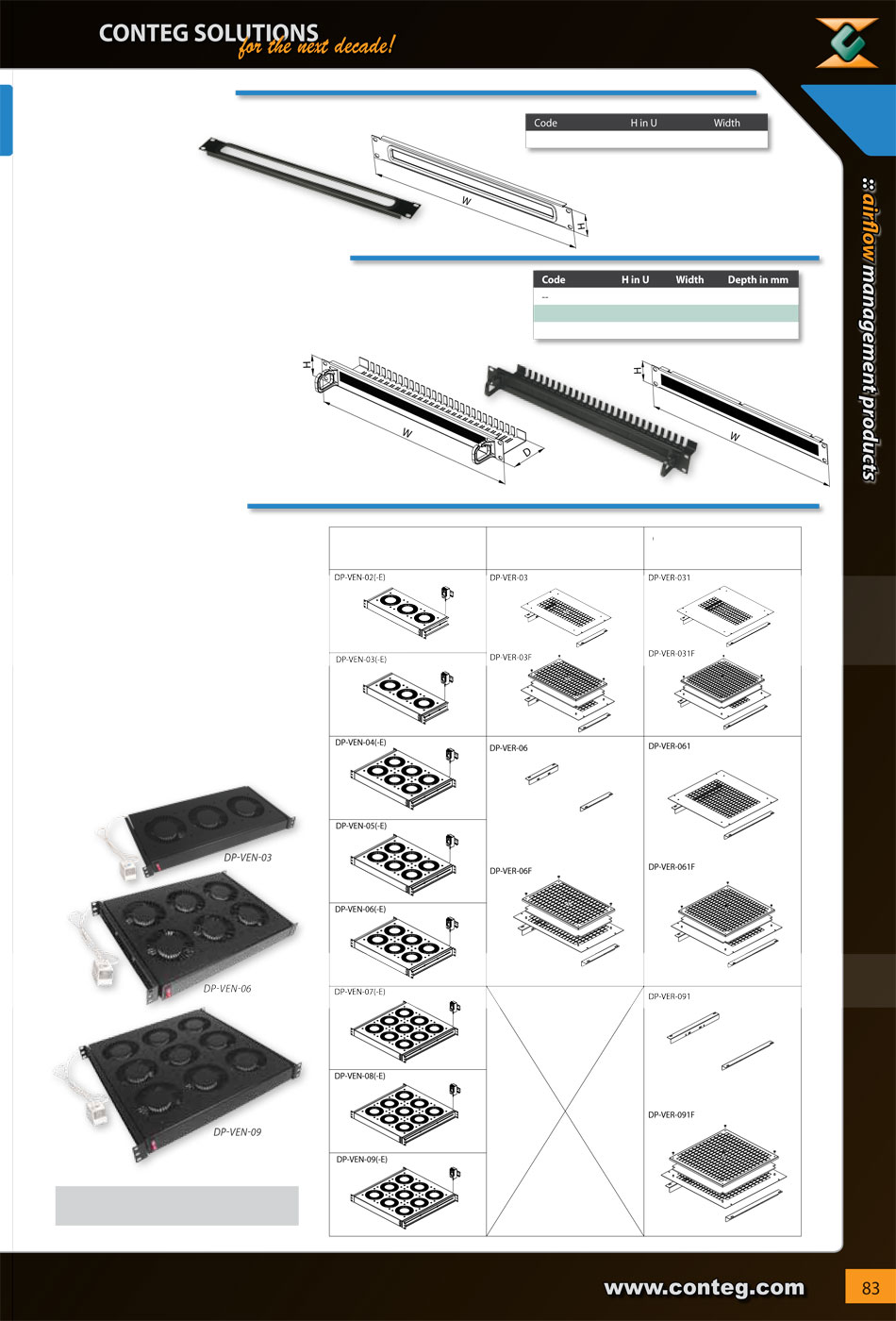

VENTILATION UNITS
Types:
a) with brush DP-BP-03
b) with brush, divided - DP-BO-03-D
c) with brush and cable management DP-BP-02
Vented panel with brush and cable management has cable management bar on back and two cable brackets 40x50mm on sides
Divided version is possible to use on an installed cables
Height 1U
Color powder coated RAL (standard RAL 9005)
Enables front to rear cable passage through empty positions in rack.
whilst helping to minimize by‑pass airflow.
19" VENTED PANEL WITH BRUSH
Height 1U
Width 19
Color powder coated
RAL (standard RAL 9005)
Enables front to rear cable passage through empty positions in rack.
19" VENTEDPANEL
DP‑ZA‑2U 2 19"
DP‑ZA‑3U 3 19"
DP‑ZA‑5U 5 19"
DP‑ZA‑1F 1 19"
DP‑ZA‑2F 2 19"
DP‑ZA‑3F 3 19"
DP‑ZA‑5F 5 19"
2 Necessary to use extrusions type C or P (with blank panels)
3 Height 42U can be replaced by 45 or 48U
DP‑ROF‑CW‑42/60/15 3 150 42 600
DP‑ROF‑CW‑42/80/15 1, 2, 3 150 42 800
DP‑RHF‑CW‑42/60/15 150 42 600
DP‑RHF‑CW‑42/80/152 150 42 800
DP‑RSF‑CW‑42/60/153 150 42 600
DP‑RSF‑CW‑42/80/15 2,3 150 42 800
DP‑AFD‑ROF‑60/100/20 2 1000 600
DP‑AFD‑ROF‑80/80/20 2 800, 1200 800
DP‑AFD‑ROF‑80/100/20 2 1000 800
DP‑AFD‑VF‑60 Variable Flow Rate Louvre 600
DP‑AFD‑VF‑80 Variable Flow Rate Louvre 800
coated sheet steel, the clever design of the turning vane ensures optimum airflow for the hot exhaust. The turning vane requires a minimum of 200mm off‑set on the rear extrusions.
The Turning Vane is designed to enhance the natural draw effect of the chimney and is designed to allow passage of cabling and power as well as effectively direct the airflow. Constructed from 1 and 2mm powder
The Air Separation frame is used for minimizing by‑pass airflow between racks hot and cold zones. Using an Air Separation frame in a Room Feed with Plenum Return deployment forms a cool zone inside the rack between the front door and the equipment mounted on the 19" profiles. Cool zone depth is recommended as 150mm.
AIR SEPARATION FRAME
Height 1, 2, 3, and 5U
Color powder coated
RAL (standard RAL 9005)
Tool‑less solution uses quarter turn fasteners
with louvre
Used to cover empty positions in rack to minimize by‑pass airflow and enhance aesthetic appearance.
19" BLANK AND FAST BLANK PANELS
with louvre
The deflector is located in the bottom part of the rack and is used to lead the cold air from the raised floor space directly to the cold zone in front part of a rack. Deflector is produced in 600 or 800mm width and can be installed into all ROF family racks of all depths from 600 to 1200mm. Deflector can be equipped with louvre which helps to control air‑flow rates or shut air supply off if no equipment is fitted into the rack. Information on compatibility of the air flow deflector with the PREMIUM rack series upon request.
AIR FLOW DEFLECTOR
with louvre
The Chimney is designed to form a duct for the hot exhaust between the rack and the hot plenum. The chimney is constructed from 1mm powder coated sheet steel and comes complete with gasket kits to ensure optimum sealing between the rack and the hot plenum.
The chimney height is adjustable from 750 to 1360mm according to your site requirements.
CHIMNEY
TURNING VANE

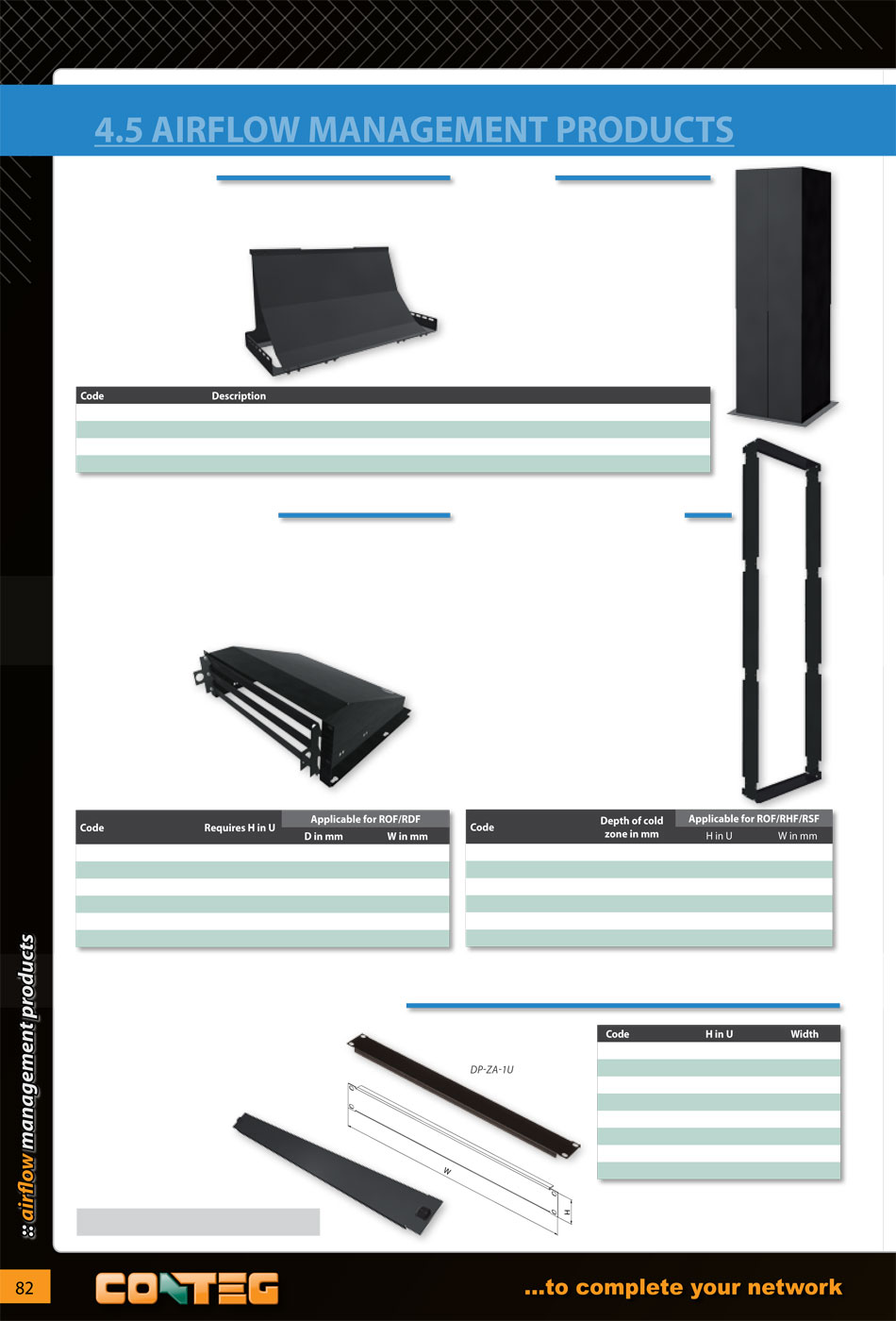

4.4 AIRFLOW MANAGEMENT PRODUCTS
DP‑HPR‑60/120‑H Kit consists of top plate, chimney, turning vane; designed for RSF‑xx‑60/120; color black (RAL 9005)
DP‑HPR‑80/120‑B Kit consists of top plate, chimney, turning vane; designed for RDF/RSF‑xx‑80/120; color light grey (RAL 7035)
DP‑HPR‑80/120‑H Kit consists of top plate, chimney, turning vane; designed for RDF/RSF‑xx‑80/120; color black (RAL 9005)
